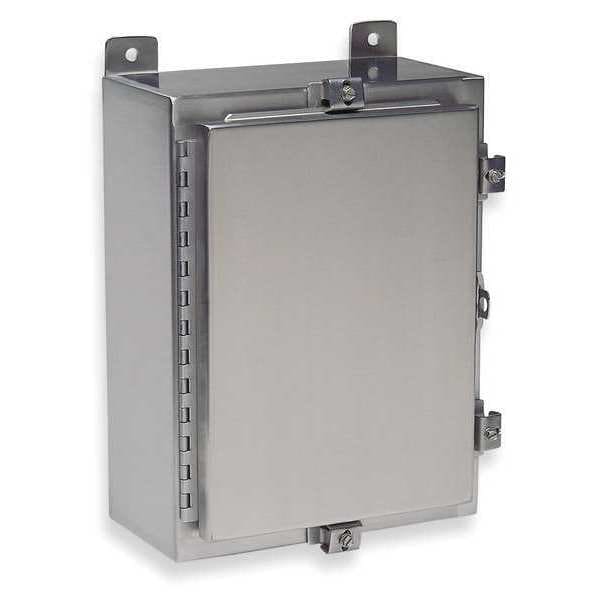

304 Stainless Steel Electrical Enclosures, 36 in H, 8 in D, 24 in W, NEMA 4X, Hinged
| Item | Electrical Enclosures |
|---|---|
| Nominal Width | 24 in |
| Nominal Height | 36 in |
| Nominal Depth | 8 in |
| Enclosure NEMA Rating | NEMA 4X |
| Material of Enclosure | 304 Stainless Steel |
| Closure Method | Hasp |
| Enclosure Cover Type | Hinged |
| Knockouts | No |
| Metallic / Non-Metallic | Metallic |
| Color | Stainless Steel |
| Finish | Smooth Grained |
| Mounting | Wall |
| Solid / Clear Cover | Solid |
| Standards | CSA Certified, cULus, IEC, UL Listed |
| Usable Opening Depth | 7.88 in |
| Metal Gauge | 14 ga |
| Features | External Mounting Feet |
| IP Rating | IP66 |
| Gasket | Seamless Polyurethane Poured in Place |
| Interior Panel | 3A932 |
| Series | SSN4 |
| Enclosure Cover Features | Padlockable |
| Enclosure Material | Stainless Steel |
| Application | Provides unmatched protection for housing electrical components in highly corrosive environments. This enclosure is used in indoor and outdoor settings that are frequently wet or have constant exposure to water, other liquids, or containments. |
| Gasket Material | Seamless Polyurethane Poured in Place |
| NEMA Enclosure Rating | 12, 4, 13, 4X, 3R |
| Includes Knockouts | Knockouts Not Included |
| Environment - MERCH | Washdown and Corrosion Resistant |
| Body Material Thickness | 14 ga |
| Compatible Panel Model Number | NP3624, NP3624G, NP3624SS |
| Cover Style | Solid |
| Cover Closure Type | Hinged |
| Package Quantity | 1 |
