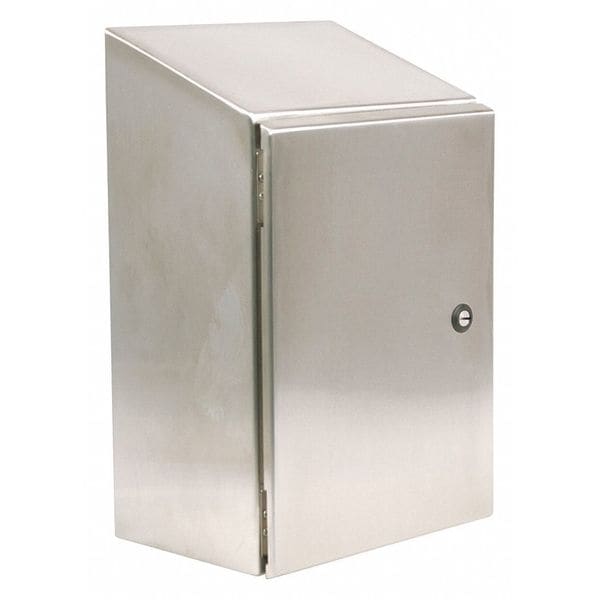

304 Stainless Steel Electrical Enclosures, 48 in H, 16 in D, 36 in W, NEMA 4, 4X, 12, 13, Hinged
| Item | Electrical Enclosures |
|---|---|
| Nominal Width | 36 in |
| Nominal Height | 48 in |
| Nominal Depth | 16 in |
| Enclosure NEMA Rating | NEMA 4, 4X, 12, 13 |
| Material of Enclosure | 304 Stainless Steel |
| Closure Method | 1/4 Turn Latch |
| Enclosure Cover Type | Hinged |
| Knockouts | No |
| Metallic / Non-Metallic | Metallic |
| Color | Stainless Steel |
| Finish | Smooth Grained |
| Mounting | Wall |
| Solid / Clear Cover | Solid |
| Gasket | Seamless Foam-In-Place |
| Series | Ultimate |
| Enclosure Cover Features | 1/4 Turn Latch |
| Usable Opening Depth | 16 in |
| Metal Gauge | 14 ga |
| Features | Mounting Holes, Poured in Place Gasket, Turn Semi-Flush Latches |
| Standards | CSA Certified, cULus, IEC, UL Listed |
| Interior Panel | Mfr No. NP4836C, NP4836CG |
| Enclosure Material | Stainless Steel |
| IP Rating | IP66 |
| Application | Hubbell Wiegmann N412CSSST ULTIMATE Series Enclosures are designed to house and protect electrical and electronic components from harsh, dirty environments. For use in installations where dirt, dust, oil, water, or other contaminants are present. Streamli |
| Gasket Material | Seamless Foam-In-Place |
| Cover Style | Solid |
| Environment - MERCH | Washdown and Corrosion Resistant |
| Includes Knockouts | Knockouts Not Included |
| Cover Closure Type | Hinged |
| Body Material Thickness | 14 ga |
| NEMA Enclosure Rating | 12, 4, 13, 4X, 3R |
| Compatible Panel Model Number | NP4836C, NP4836CG, NP4836SSC |
| Package Quantity | 1 |
