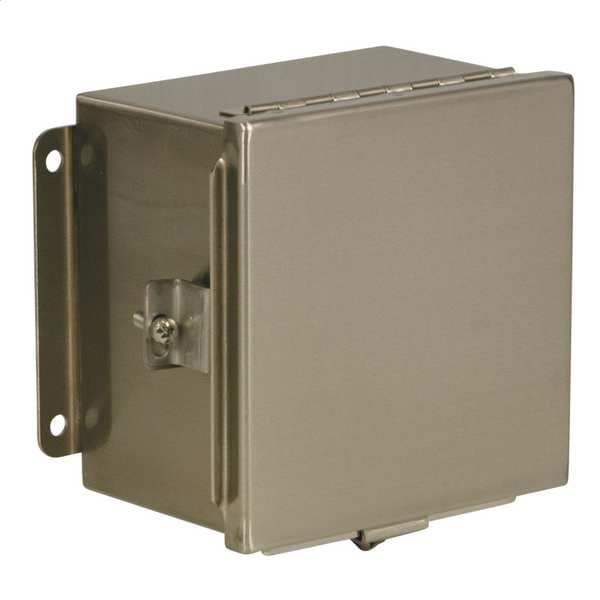

304 Stainless Steel Electrical Enclosures, 6 in H, 4 in D, 4 in W, NEMA 4X, Hinged
| Item | Electrical Enclosures |
|---|---|
| Nominal Width | 4 in |
| Nominal Height | 6 in |
| Nominal Depth | 4 in |
| Enclosure NEMA Rating | NEMA 4X |
| Material of Enclosure | 304 Stainless Steel |
| Closure Method | Screws, Clamps |
| Enclosure Cover Type | Hinged |
| Knockouts | No |
| Metallic / Non-Metallic | Metallic |
| Color | Stainless Steel |
| Finish | #3 Brushed |
| Mounting | Wall |
| Solid / Clear Cover | Solid |
| IP Rating | IP66 |
| Series | BN4-CHSS |
| Gasket | Seamless Polyurethane Poured in Place |
| Features | External Mounting Plates |
| Metal Gauge | 16 ga |
| Interior Panel | 4LV58 |
| Usable Opening Depth | 3.88 in |
| Enclosure Cover Features | Screwdown Clamps |
| Standards | CSA Certified, cULus, IEC, UL Listed |
| Includes | Clamp, Stainless Steel Screws |
| Enclosure Material | Stainless Steel |
| Weight | 5.3 lb. |
| Capacity | 96 cu in |
| Application | Provides unmatched protection for housing electrical components in highly corrosive environments. This enclosure is used in indoor and outdoor settings that are frequently wet or have constant exposure to water, other liquids, or contaminants. |
| Gasket Material | Seamless Polyurethane Poured in Place |
| NEMA Enclosure Rating | 12, 4, 13, 4X |
| Cover Closure Type | Hinged |
| Includes Knockouts | Knockouts Not Included |
| Body Material Thickness | 16 ga |
| Compatible Panel Model Number | P0604, P0604G, P0604SS |
| Cover Style | Solid |
| Environment - MERCH | Washdown and Corrosion Resistant |
| Package Quantity | 1 |
