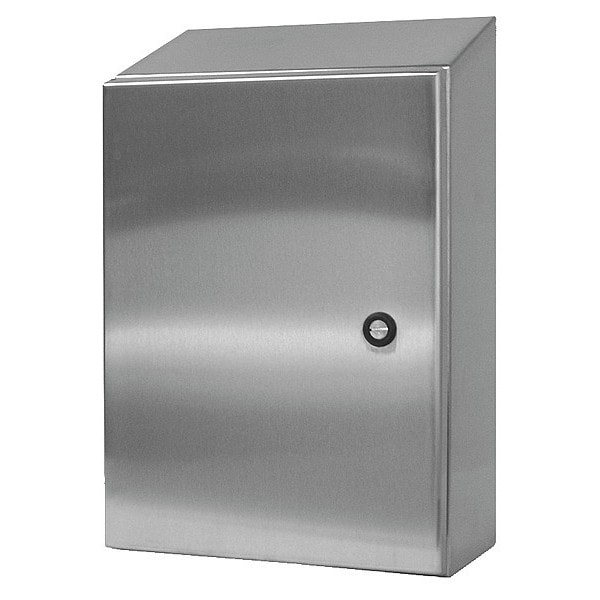

304 Stainless Steel Electrical Enclosures, 60 in H, 16 in D, 36 in W, NEMA 4, 4X, 12, 13, Hinged
| Item | Electrical Enclosures |
|---|---|
| Nominal Width | 36 in |
| Nominal Height | 60 in |
| Nominal Depth | 16 in |
| Enclosure NEMA Rating | NEMA 4, 4X, 12, 13 |
| Material of Enclosure | 304 Stainless Steel |
| Closure Method | 1/4 Turn Latch |
| Enclosure Cover Type | Hinged |
| Knockouts | No |
| Metallic / Non-Metallic | Metallic |
| Color | Stainless Steel |
| Finish | Smooth Grained |
| Mounting | Wall |
| Solid / Clear Cover | Solid |
| Interior Panel | 34C472 |
| Series | N412-CSSST |
| IP Rating | IP66 |
| Metal Gauge | 14 ga |
| Gasket | Seamless Polyurethane Poured in Place |
| Enclosure Cover Features | 1/4 Turn Semiflush Latch |
| Features | Mounting Holes |
| Usable Opening Depth | 15.88 in |
| Standards | CSA Certified, cULus, IEC, UL Listed |
| Enclosure Material | Stainless Steel |
| Capacity | 17,280 cu in |
| Weight | 106 lb. |
| Application | Hubbell Wiegmann N412CSSST ULTIMATE Series Enclosures are designed to house and protect electrical and electronic components from harsh, dirty environments. For use in installations where dirt, dust, oil, water, or other contaminants are present. Streamli |
| Body Material Thickness | 14 ga |
| NEMA Enclosure Rating | 12, 4, 13, 4X, 3R |
| Environment - MERCH | Washdown and Corrosion Resistant |
| Gasket Material | Seamless Polyurethane Poured in Place |
| Cover Style | Solid |
| Includes Knockouts | Knockouts Not Included |
| Compatible Panel Model Number | NP6036C, NP6036CG, NP6036SSC |
| Cover Closure Type | Hinged |
| Package Quantity | 1 |
