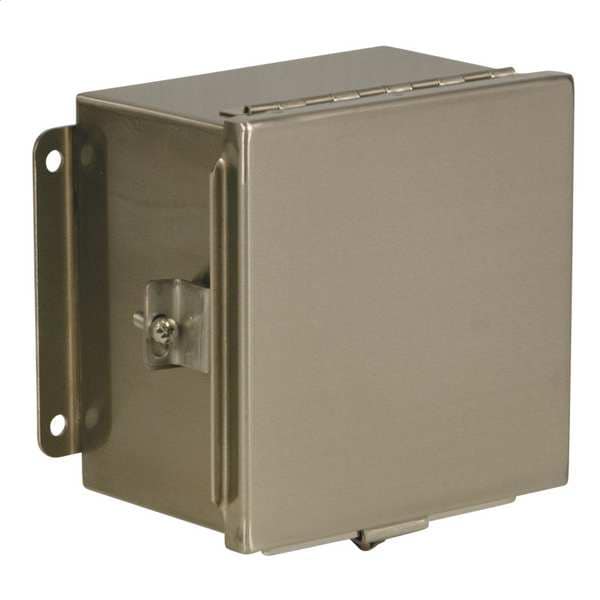

304 Stainless Steel Electrical Enclosures, 8 in H, 4 in D, 6 in W, NEMA 4X, Hinged
| Item | Electrical Enclosures |
|---|---|
| Nominal Width | 6 in |
| Nominal Height | 8 in |
| Nominal Depth | 4 in |
| Enclosure NEMA Rating | NEMA 4X |
| Material of Enclosure | 304 Stainless Steel |
| Closure Method | Screws, Clamps |
| Enclosure Cover Type | Hinged |
| Knockouts | No |
| Metallic / Non-Metallic | Metallic |
| Color | Stainless Steel |
| Finish | Brushed |
| Mounting | Wall |
| Solid / Clear Cover | Solid |
| Features | External Mounting Plates |
| Series | BN4-CHSS |
| Metal Gauge | 16 ga |
| Interior Panel | 3A926 |
| Gasket | Seamless Polyurethane Poured in Place |
| Usable Opening Depth | 3.88 in |
| IP Rating | IP66 |
| Standards | CSA Certified, cULus, IEC, UL Listed |
| Cover Type | Hinged Cover |
| Enclosure Material | Stainless Steel |
| Includes | Clamp, Stainless Steel Screws |
| Weight | 6.11 lb. |
| Capacity | 192 cu in |
| Application | Provides unmatched protection for housing electrical components in highly corrosive environments. This enclosure is used in indoor and outdoor settings that are frequently wet or have constant exposure to water, other liquids, or contaminants. |
| Includes Knockouts | Knockouts Not Included |
| Body Material Thickness | 16 ga |
| Compatible Panel Model Number | P0806, P0806G, P0806SS |
| Environment - MERCH | Washdown and Corrosion Resistant |
| NEMA Enclosure Rating | 12, 4, 13, 4X |
| Cover Style | Solid |
| Gasket Material | Seamless Polyurethane Poured in Place |
| Cover Closure Type | Hinged |
| Package Quantity | 1 |
