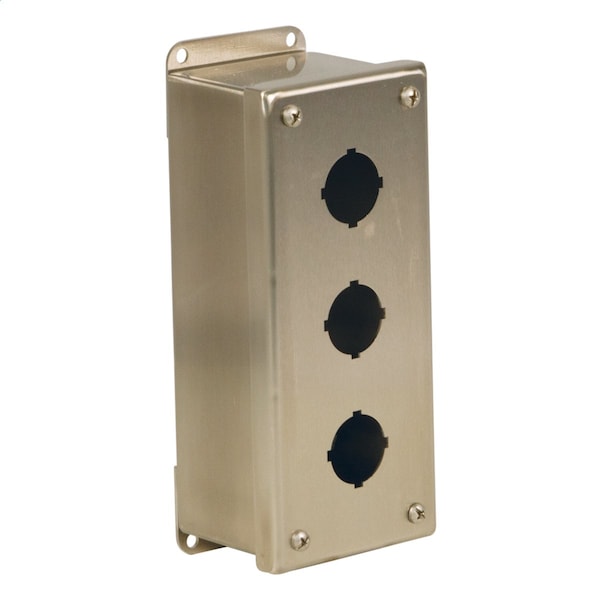

316 Stainless Steel Electrical Enclosures, 10 in H, 3 in D, 6 in W, NEMA 4X, Screw On
| Item | Electrical Enclosures |
|---|---|
| Nominal Width | 6 in |
| Nominal Height | 10 in |
| Nominal Depth | 3 in |
| Enclosure NEMA Rating | NEMA 4X |
| Material of Enclosure | 316 Stainless Steel |
| Closure Method | Screws |
| Enclosure Cover Type | Screw On |
| Knockouts | No |
| Metallic / Non-Metallic | Metallic |
| Finish | Smooth Grained |
| Mounting | Wall |
| Solid / Clear Cover | Solid |
| Features | Bodies and doors fabricated from 14 gauge 316 stainless steel. Continuously welded seams ground smooth. Closed cell oil resistant neoprene gasket. External mounting plates, top and bottom of enclosure. Captivated cover screws thread into sealed wells. Standard "4-way" pushbutton holes accept all brands of oil-tight push buttons, switches, and pilot lights. Enclosures have internal detachable hinges to hold cover open during wiring, yet permit quick removal. Grounding provisions provided. |
| Standards | UL, CSA |
| Number of Holes | 6 |
| Series | PBSS-A |
| Application | Designed to hold all standard brands of pushbuttons, switches, and pilot lights. Provide protection from dust, dirt, oil, and water. PBSS Series designed for areas where serious corrosion problems exist. |
| Weight | 6 lb. |
| Capacity | 180 cu in |
| Package Quantity | 1 |
