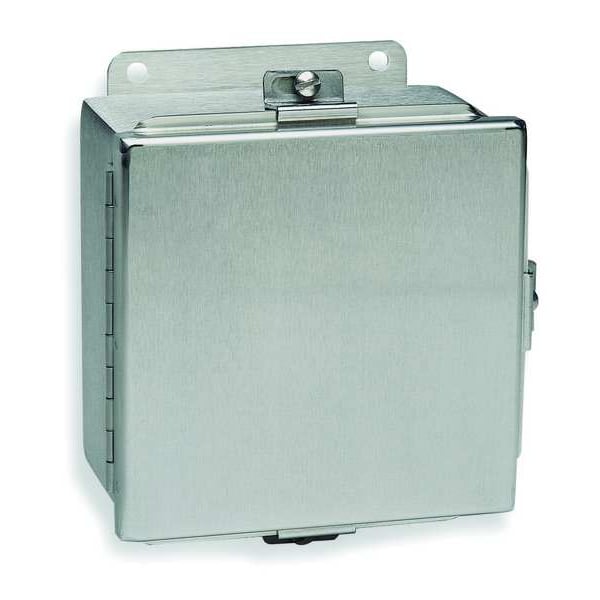

316 Stainless Steel Electrical Enclosures, 14 in H, 6 in D, 12 in W, NEMA 4X, Hinged
| Item | Electrical Enclosures |
|---|---|
| Nominal Width | 12 in |
| Nominal Height | 14 in |
| Nominal Depth | 6 in |
| Enclosure NEMA Rating | NEMA 4X |
| Material of Enclosure | 316 Stainless Steel |
| Closure Method | Screws, Clamps |
| Enclosure Cover Type | Hinged |
| Knockouts | No |
| Metallic / Non-Metallic | Metallic |
| Color | Stainless Steel |
| Finish | #3 Brushed |
| Mounting | Wall |
| Solid / Clear Cover | Solid |
| Usable Opening Depth | 5.88 in |
| Enclosure Cover Features | Screwdown Clamps |
| Gasket | Seamless Polyurethane Poured in Place |
| Features | External Mounting Plates |
| Series | BN4-CHSSA |
| IP Rating | IP66 |
| Interior Panel | 6XC23 |
| Metal Gauge | 16 ga |
| Standards | CSA Certified, cULus, IEC, UL Listed |
| Includes | Clamp, Stainless Steel Screws |
| Enclosure Material | Stainless Steel |
| Weight | 18 lb. |
| Capacity | 1,404 cu in |
| Application | Provides unmatched protection for housing electrical components in highly corrosive environments. This enclosure is used in indoor and outdoor settings that are frequently wet or have constant exposure to water, other liquids, or contaminants. |
| Cover Style | Solid |
| Compatible Panel Model Number | P1412, P1412G, P1412SS |
| Body Material Thickness | 16 ga |
| NEMA Enclosure Rating | 12, 4, 13, 4X |
| Gasket Material | Seamless Polyurethane Poured in Place |
| Includes Knockouts | Knockouts Not Included |
| Cover Closure Type | Hinged |
| Environment - MERCH | Washdown and Corrosion Resistant |
| Package Quantity | 1 |
