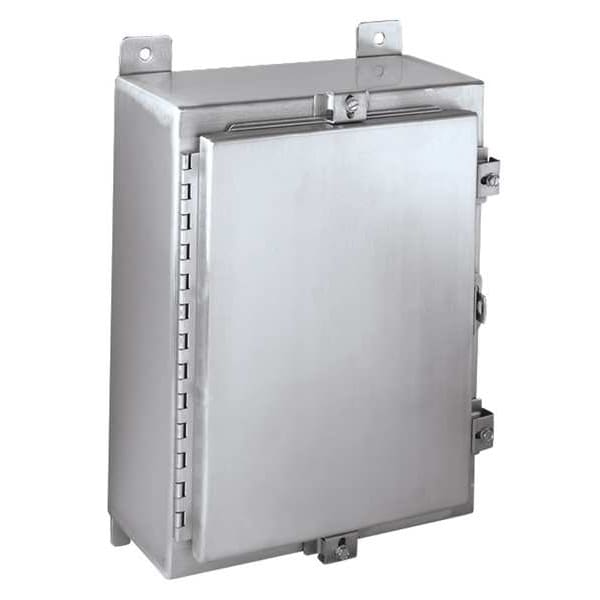

316 Stainless Steel Electrical Enclosures, 20 in H, 8 in D, 20 in W, NEMA 4X, Hinged
| CAD Available | Yes |
|---|---|
| Item | Electrical Enclosures |
| Nominal Width | 20 in |
| Nominal Height | 20 in |
| Nominal Depth | 8 in |
| Enclosure NEMA Rating | NEMA 4X |
| Material of Enclosure | 316 Stainless Steel |
| Closure Method | Hasp |
| Enclosure Cover Type | Hinged |
| Knockouts | No |
| Metallic / Non-Metallic | Metallic |
| Color | Stainless Steel |
| Finish | Smooth Grained |
| Mounting | Wall |
| Solid / Clear Cover | Solid |
| Standards | CSA Certified, cULus, IEC, UL Listed |
| Gasket | Seamless Polyurethane Poured in Place |
| Interior Panel | 3A922 |
| IP Rating | IP66 |
| Features | External Mounting Feet |
| Metal Gauge | 14 ga |
| Usable Opening Depth | 7.88 in |
| Series | 5SY4 |
| Enclosure Cover Features | Hasp and Staple for Padlocking |
| Enclosure Material | Stainless Steel |
| Weight | 38 lb. |
| Capacity | 4,830 cu in |
| Application | Provides unmatched protection for housing electrical components in highly corrosive environments. This enclosure is used in indoor and outdoor settings that are frequently wet or have constant exposure to water, other liquids, or containments. |
| Cover Closure Type | Hinged |
| Environment - MERCH | Washdown and Corrosion Resistant |
| Cover Style | Solid |
| Includes Knockouts | Knockouts Not Included |
| Body Material Thickness | 14 ga |
| Compatible Panel Model Number | NP2020, NP2020G, NP2020SS |
| NEMA Enclosure Rating | 12, 4, 13, 4X, 3R |
| Gasket Material | Seamless Polyurethane Poured in Place |
| Package Quantity | 1 |
