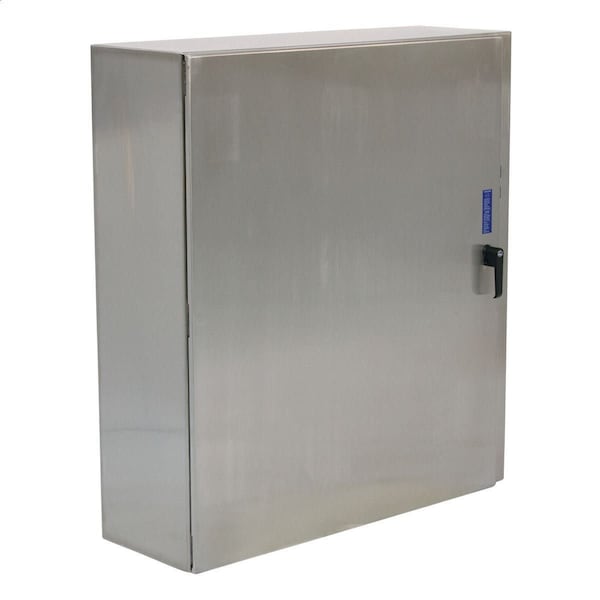

316 Stainless Steel Electrical Enclosures, 36 in H, 8 in D, 32 in W, NEMA 4, 12
| Item | Electrical Enclosures |
|---|---|
| Nominal Width | 32 in |
| Nominal Height | 36 in |
| Nominal Depth | 8 in |
| Enclosure NEMA Rating | NEMA 4, 12 |
| Material of Enclosure | 316 Stainless Steel |
| Closure Method | Latch |
| Metallic / Non-Metallic | Metallic |
| Color | Stainless Steel |
| Finish | Smooth Grained |
| Mounting | Wall |
| Solid / Clear Cover | Solid |
| Standards | UL, CSA |
| Features | Bodies and doors are fabricated from 316L stainless steel; Seams are continuously welded and ground smooth; Doors are sealed with a poured in place gasket; Mounting holes are located in the back of the enclosure; Latching system interlocks with the disconnect handle for added safety |
| Application | These general purpose disconnect enclosures accept major brand disconnect switches and circuit breakers, available with or without Wiegmann-supplied defeater door handle and handle hardware. |
| Weight | 98 lb. |
| Capacity | 9,216 cu in |
| Package Quantity | 1 |
