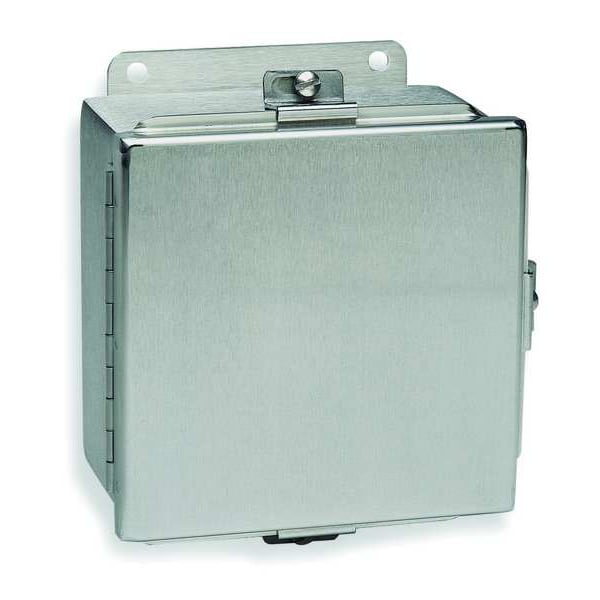

316 Stainless Steel Electrical Enclosures, 6 in H, 4 in D, 6 in W, NEMA 4X, Hinged
| CAD Available | Yes |
|---|---|
| Item | Electrical Enclosures |
| Nominal Width | 6 in |
| Nominal Height | 6 in |
| Nominal Depth | 4 in |
| Enclosure NEMA Rating | NEMA 4X |
| Material of Enclosure | 316 Stainless Steel |
| Closure Method | Screws, Clamps |
| Enclosure Cover Type | Hinged |
| Knockouts | No |
| Metallic / Non-Metallic | Metallic |
| Color | Stainless Steel |
| Finish | Brushed |
| Mounting | Wall |
| Solid / Clear Cover | Solid |
| Standards | CSA Certified, cULus, IEC, UL Listed |
| Series | BN4-CHSSA |
| Usable Opening Depth | 3.88 in |
| Interior Panel | 6XC20 |
| Metal Gauge | 16 ga |
| Gasket | Seamless Polyurethane Poured in Place |
| Features | External Mounting Plates |
| IP Rating | IP66 |
| Includes | Clamp, Stainless Steel Screws |
| Enclosure Material | Stainless Steel |
| Cover Type | Hinged Cover |
| Capacity | 224 cu in |
| Weight | 4 lb. |
| Application | Provides unmatched protection for housing electrical components in highly corrosive environments. This enclosure is used in indoor and outdoor settings that are frequently wet or have constant exposure to water, other liquids, or contaminants. |
| Gasket Material | Seamless Polyurethane Poured in Place |
| Body Material Thickness | 16 ga |
| Environment - MERCH | Washdown and Corrosion Resistant |
| Includes Knockouts | Knockouts Not Included |
| Compatible Panel Model Number | P0606, P0606G, P0606SS |
| NEMA Enclosure Rating | 12, 4, 13, 4X |
| Cover Closure Type | Hinged |
| Cover Style | Solid |
| Package Quantity | 1 |
