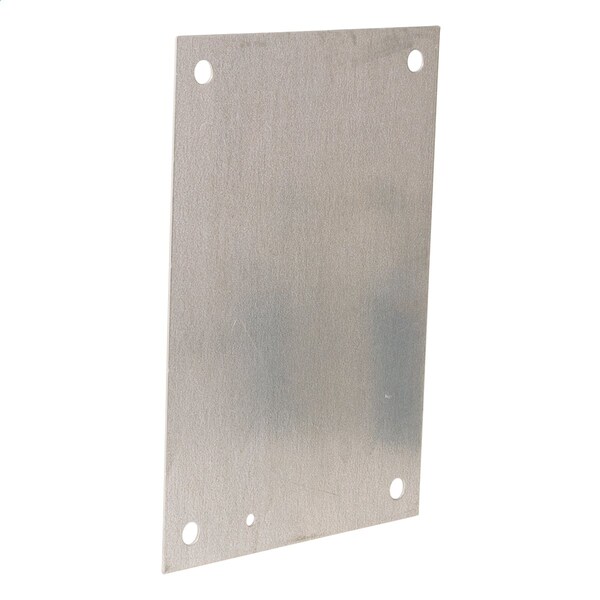

Back Panel, 1 in. H x 23 in. W, Carbon Steel
| Item | Back Panel |
|---|---|
| For Use With | NEMA 1, 3R, 12, 4, and 4X wall-mounts |
| Dimension | 1 in. H x 23 in. W |
| Height | 1 in |
| Width | 23 in |
| Type | Back Panel |
| Mounting | Mounting Holes |
| Material | Carbon Steel |
| Color | Unpainted |
| Finish | Conductive |
| Application | For use with NEMA 1, 3R, 12, 4, and 4X wall-mounts. |
| Features | Fabricated from pre-galvanized steel; Panels mount to provided collar studs |
| Actual Height | 1-3/8 in |
| Each - Width | 23-1/4 in |
| Construction | Non-Flanged |
| Actual Width | 23-1/4 in |
| Finish Type | Conductive |
| Series | NP |
| Mounting Type | Mounting Holes |
| Special Features | Galvanized panels are 12 gauge. Panel with any side over 20.00" has 3/4" flange on all sides. Optional "G" panels have a conductive finish (no paint). Panels fit the following enclosures: NEMA 1, Large (NIC); NEMA 3R, hinged Cover (RHC, Large); NEMA 4, 412, & 4X Single Door (N12, N4, N412, SSN4, SSN43PT, SSN43PTW); NEMA 12, 2-Door Wall-Mount (WAWF), Single Door; Right Flange Disconnect (SDN12, ABM12); Large JIC (B-CH, Large) Single door N12. |
| Shape | Rectangle |
| Package Quantity | 1 |
