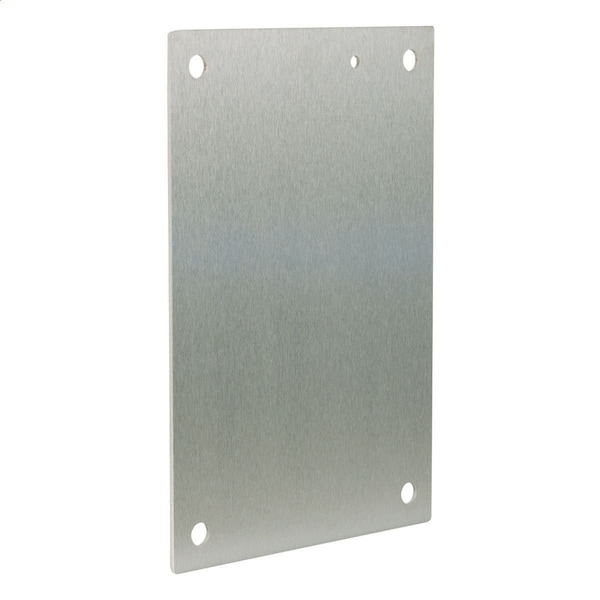

Back Panel, 17 in. H x 13 in. W, Aluminum
| Item | Back Panel |
|---|---|
| For Use With | NEMA 1, 3R, 12, 4, and 4X wall-mounts |
| Dimension | 17 in. H x 13 in. W |
| Height | 17 in |
| Width | 13 in |
| Type | Back Panel |
| Mounting | Mounting Holes |
| Material | Aluminum |
| Application | For use with NEMA 1, 3R, 12, 4, and 4X wall-mounts. |
| Features | Can also be used in N1, RHC, N4, N4X, N12, and N412 wall-mount enclosures |
| Special Features | Aluminum panels are 5052-H32 aluminum alloy, .125-inch thick. Panels fit the following enclosures: NEMA 1, Large (NIC); NEMA 3R, hinged Cover (RHC, Large); NEMA 4, 412, and 4X Single Door (N12, N4, N412, SSN4, SSN43PT, SSN43PTW); NEMA 12, 2-Door Wall-Mount (WAWF), Single Door; Right Flange Disconnect (SDN12, ABN12); Large JIC (B-CH, Large), Single Door N12. |
| Mounting Type | Mounting Holes |
| Construction | Non-Flanged |
| Each - Width | 13 in |
| Series | ALN4 |
| Shape | Rectangle |
| Package Quantity | 1 |
