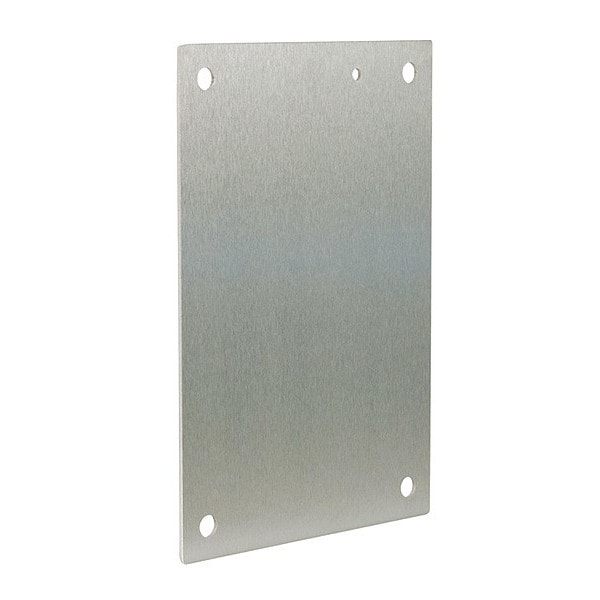

Back Panel, Aluminum Backpanel, Size 27X21 Accessory, Aluminum
| Item | Back Panel |
|---|---|
| Material | Aluminum |
| Width | 21 in |
| Length | 27 in |
| Mounting | Mounting Holes |
| Shape | Rectangle |
| Height | 27 in |
| Mounting Type | Mounting Holes |
| Application | For use with NEMA 1, 3R, 12, 4, and 4X wall-mounts. |
| Special Features | Aluminum panels are 5052-H32 aluminum alloy, .125-inch thick. Panels larger than 20"x20" have 3/4" flange on all sides. Panels fit the following enclosures: NEMA 1, Large (NIC); NEMA 3R, hinged Cover (RHC, Large); NEMA 4, 412, and 4X Single Door (N12, N4, N412, SSN4, SSN43PT, SSN43PTW); NEMA 12, 2-Door Wall-Mount (WAWF), Single Door; Right Flange Disconnect (SDN12, ABN12); Large JIC (B-CH, Large), Single Door N12. |
| Series | ALN4 |
| Features | Can also be used in N1, RHC, N4, N4X, N12, and N412 wall-mount enclosures |
| Overall Width | 21 in |
| Compatible with Manufacturer Model Number | ABM12, B-CH, N12, N4, N412, SDN12, SSN4, SSN43PT, SSN43PTW |
| Overall Height | 27 in |
| Panel Style | Back Panel |
| Compatible with Mfr. Model No. | ABM12, B-CH, N12, N4, N412, SDN12, SSN4, SSN43PT, SSN43PTW |
| For Use with Mfr Model Number | ABM12, B-CH, N12, N4, N412, SDN12, SSN4, SSN43PT, SSN43PTW |
| Package Quantity | 1 |
