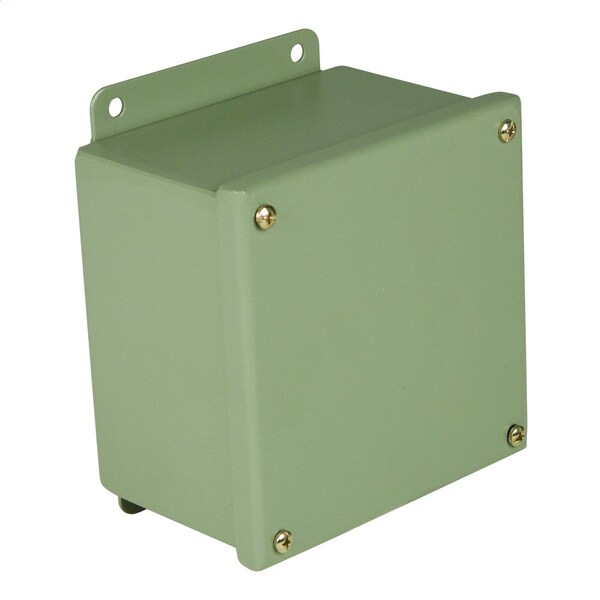

Captive Screws Electrical Enclosures, 10 in H, 6 in D, 10 in W
| Item | Electrical Enclosures |
|---|---|
| Nominal Width | 10 in |
| Nominal Height | 10 in |
| Nominal Depth | 6 in |
| Closure Method | Screws |
| Knockouts | Yes |
| Metallic / Non-Metallic | Metallic |
| Color | Gray |
| Finish | Polyester Powder |
| Mounting | Wall |
| Enclosure Cover Type | Screw On |
| Material of Enclosure | Carbon Steel |
| Solid / Clear Cover | Solid |
| Enclosure NEMA Rating | NEMA 12 |
| Features | Bodies and doors fabricated from 14 gauge steel. Continuously welded seams ground smooth, less knockouts of holes. Lids are sealed with closed cell oil resistant neoprene gasket. External mounting plates, top and bottom of enclosure. Weldnuts are provided to secure optional back panel. Captivated cover screws are provided which thread into sealed wells to prevent leakage through cover. Grounding provisions provided. |
| Standards | UL, CSA |
| Weight | 11 lb. |
| Application | Designed for use as instrument housings, electrical control enclosures, terminal wiring boxes, or electrical junction boxes. Provides protection from dirt, dust, oil, and water. |
| Capacity | 600 cu in |
| Package Quantity | 1 |
