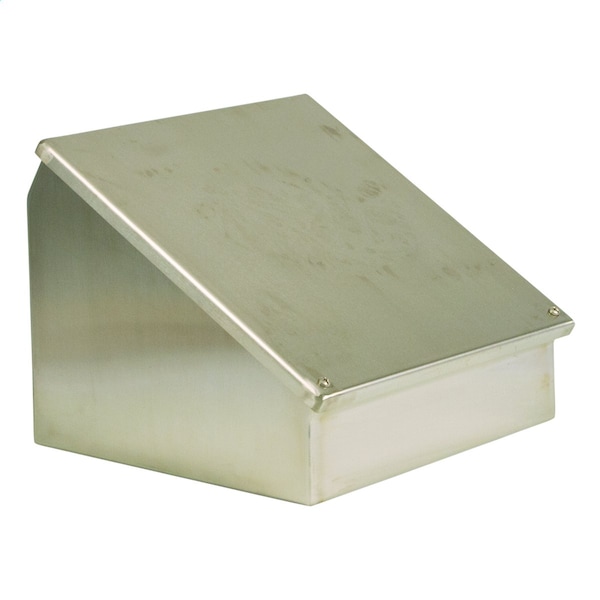

Captive Screws Electrical Enclosures, 16 in H, 11 in D, 16 in W
| Item | Electrical Enclosures |
|---|---|
| Nominal Width | 16 in |
| Nominal Height | 16 in |
| Nominal Depth | 11 in |
| Closure Method | Screws |
| Knockouts | No |
| Metallic / Non-Metallic | Metallic |
| Finish | Smooth Grained |
| Mounting | Floor |
| Material of Enclosure | 304 Stainless Steel |
| Standards | UL, CSA |
| Enclosure Cover Type | Screw On |
| Enclosure NEMA Rating | NEMA 12 |
| Solid / Clear Cover | Solid |
| Series | WC-SS |
| Features | Fabricated from 304 stainless steel; Seams are continuously welded and ground smooth; Grounding provisions |
| Weight | 25 lb. |
| Application | Designed to house a variety of electronic control or instrumentation devices. Consolets provide protection from dust, dirt, oil, and water. Flexible design allows for mounting on either of two sides, creating control surfaces of 30 degrees or 60 degrees. |
| Capacity | 2,816 cu in |
| Package Quantity | 1 |
