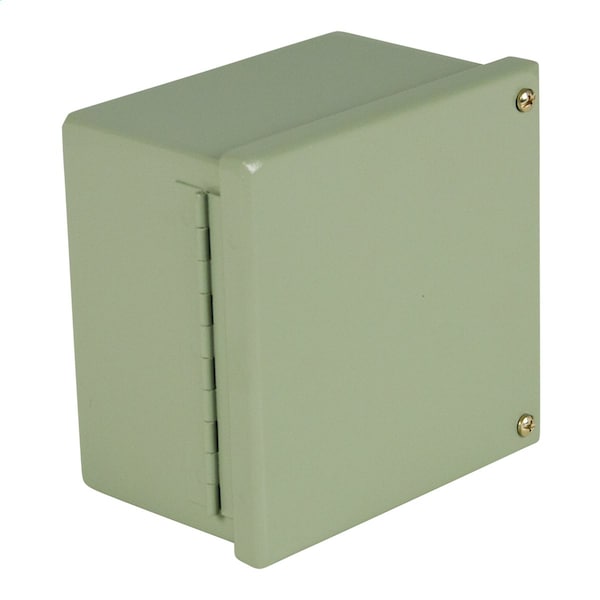

Captive Screws Electrical Enclosures, 8 in H, 4 in D, 6 in W
| Item | Electrical Enclosures |
|---|---|
| Nominal Width | 6 in |
| Nominal Height | 8 in |
| Nominal Depth | 4 in |
| Closure Method | Screws |
| Knockouts | Yes |
| Metallic / Non-Metallic | Metallic |
| Color | Gray |
| Finish | Polyester Powder |
| Mounting | Wall |
| Solid / Clear Cover | Solid |
| Standards | UL, CSA |
| Material of Enclosure | Carbon Steel |
| Features | Fabricated from 14 gauge steel. Continuously welded seams ground smooth, less knockouts or holes. Lids are sealed with closed cell oil resistant neoprene gasket. Cover is secured by continuous hinge. Captivated door screws thread into sealed wells. No mounting feet or mounting holes are provided. Weldnuts are provided to mount optional panels. Grounding provisions provided. |
| Enclosure Cover Type | Hinged |
| Enclosure NEMA Rating | NEMA 12 |
| Application | Designed for use as instrument housings, electrical control enclosures, terminal wiring boxes, or electrical junction boxes. Provides protection from dirt, dust, oil, and water. |
| Weight | 5.38 lb. |
| Capacity | 192 cu in |
| Package Quantity | 1 |
