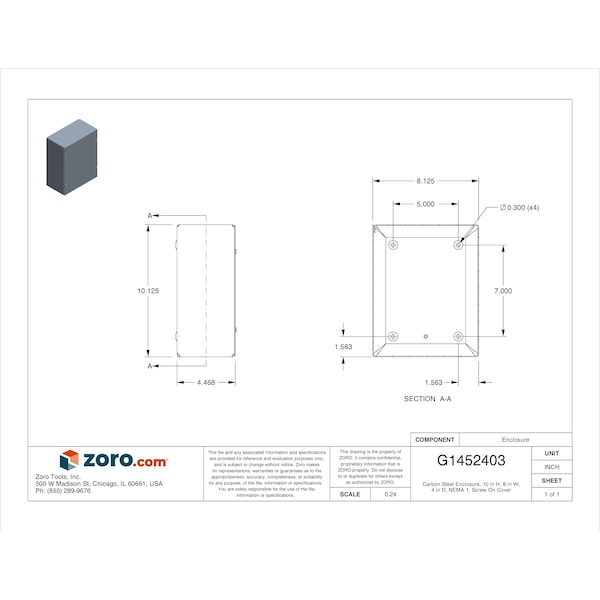

Carbon Steel Electrical Enclosures, 10 in H, 4 in D, 8 in W, NEMA 1, Screw On
| CAD Available | Yes |
|---|---|
| Item | Electrical Enclosures |
| Nominal Width | 8 in |
| Nominal Height | 10 in |
| Nominal Depth | 4 in |
| Enclosure NEMA Rating | NEMA 1 |
| Material of Enclosure | Carbon Steel |
| Closure Method | Screws |
| Enclosure Cover Type | Screw On |
| Knockouts | No |
| Metallic / Non-Metallic | Metallic |
| Color | Gray |
| Finish | Polyester Powder |
| Mounting | Wall |
| Solid / Clear Cover | Solid |
| Metal Gauge | 16 ga |
| Usable Opening Depth | 3.88 in |
| Series | SC |
| Standards | CSA Certified, cULus, UL Listed |
| Includes | Self-Tapping Screws |
| Features | Embossed Mounting Holes |
| Cover Type | Screw Cover |
| Enclosure Material | Steel |
| Capacity | 320 cu in |
| Weight | 6 lb. |
| Application | Designed for use as a junction box and pull box in commercial and general industrial applications. Flush covers must be ordered separately for flush mount applications. |
| NEMA Enclosure Rating | 1 |
| Includes Knockouts | Knockouts Not Included |
| Cover Closure Type | Screw On |
| Cover Style | Solid |
| Body Material Thickness | 16 ga |
| Environment - MERCH | Indoor |
| Package Quantity | 1 |
