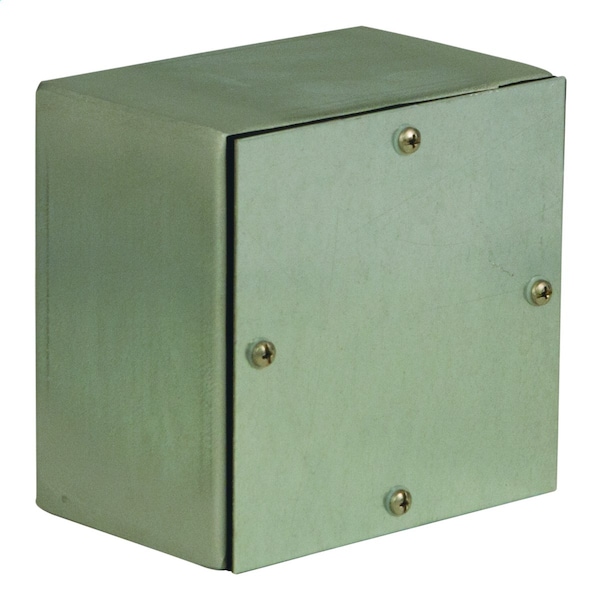

Carbon Steel Electrical Enclosures, 10 in H, 6 in D, 10 in W, NEMA 4, Screw On
| Item | Electrical Enclosures |
|---|---|
| Nominal Width | 10 in |
| Nominal Height | 10 in |
| Nominal Depth | 6 in |
| Enclosure NEMA Rating | NEMA 4 |
| Material of Enclosure | Carbon Steel |
| Closure Method | Screws |
| Enclosure Cover Type | Screw On |
| Knockouts | No |
| Metallic / Non-Metallic | Metallic |
| Finish | Galvanized |
| Solid / Clear Cover | Solid |
| Standards | UL |
| Features | Bodies and covers fabricated from 14 gauge G-9- grade galvanized steel; Seams are continuously welded and ground smooth; Covers contain closed cell oil resistant neoprene gasket; Enclosure comes with stainless steel cover screws which thread into seals wells to prevent liquid, dust, etc. from entering into the box through the screw holes; Ground stud located in door; No holes, knockout, or rear mounting holes |
| Application | Designed for use as wiring box, junction box, pull box, and terminal box in many indoor or outdoor applications where dust or moisture is a problem. |
| Weight | 10.5 lb. |
| Capacity | 396 cu in |
| Package Quantity | 1 |
