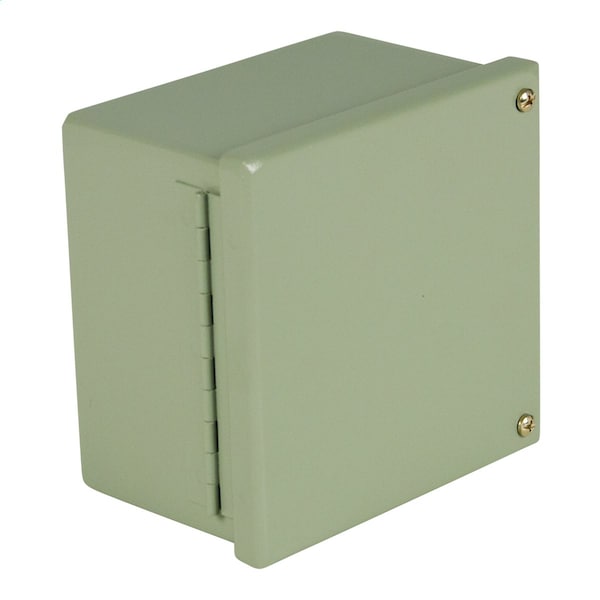

Carbon Steel Electrical Enclosures, 12 in H, 4 in D, 10 in W, NEMA 12, Hinged
| Item | Electrical Enclosures |
|---|---|
| Nominal Width | 10 in |
| Nominal Height | 12 in |
| Nominal Depth | 4 in |
| Enclosure NEMA Rating | NEMA 12 |
| Material of Enclosure | Carbon Steel |
| Closure Method | Screws |
| Enclosure Cover Type | Hinged |
| Knockouts | Yes |
| Metallic / Non-Metallic | Metallic |
| Color | Gray |
| Finish | Polyester Powder |
| Mounting | Wall |
| Solid / Clear Cover | Solid |
| Standards | UL, CSA |
| Features | Fabricated from 14 gauge steel. Continuously welded seams ground smooth, less knockouts or holes. Lids are sealed with closed cell oil resistant neoprene gasket. Cover is secured by continuous hinge. Captivated door screws thread into sealed wells. No mounting feet or mounting holes are provided. Weldnuts are provided to mount optional panels. Grounding provisions provided. |
| Weight | 10 lb. |
| Application | Designed for use as instrument housings, electrical control enclosures, terminal wiring boxes, or electrical junction boxes. Provides protection from dirt, dust, oil, and water. |
| Capacity | 480 cu in |
| Package Quantity | 1 |
