Carbon Steel Electrical Enclosures, 12 in H, 6 in D, 10 in W, NEMA 3R, Hinged

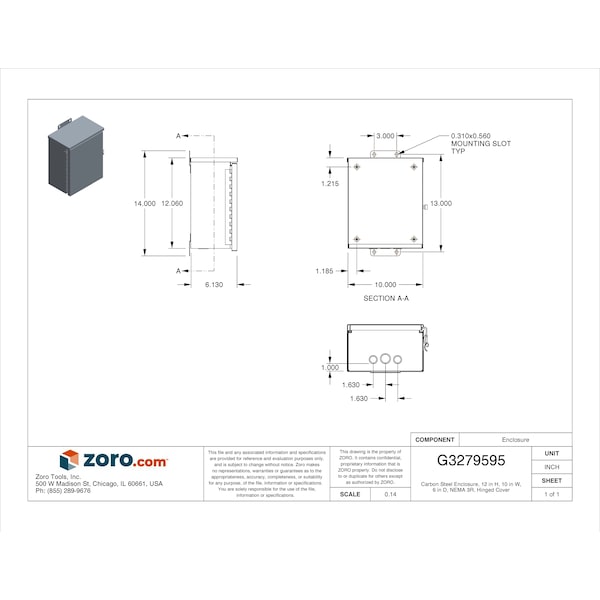

| CAD Available | Yes |
|---|---|
| Item | Electrical Enclosures |
| Nominal Width | 10 in |
| Nominal Height | 12 in |
| Nominal Depth | 6 in |
| Enclosure NEMA Rating | NEMA 3R |
| Material of Enclosure | Carbon Steel |
| Closure Method | Hasp |
| Enclosure Cover Type | Hinged |
| Knockouts | Yes |
| Metallic / Non-Metallic | Metallic |
| Color | Gray |
| Finish | Polyester Powder |
| Mounting | Wall |
| Solid / Clear Cover | Solid |
| Series | RHC |
| Usable Opening Depth | 5.88 in |
| Metal Gauge | 16 ga |
| Standards | CSA Certified, cULus, UL Listed |
| Features | External Mounting Plates |
| Interior Panel | 3A937 |
| Cover Type | Hinged Cover |
| Enclosure Material | Steel |
| Cable Entry | Knock Outs |
| Application | Designed for use as wiring boxes and junction boxes. Provides protection in outdoor installations against rain, sleet, and snow, or indoors against dripping water. |
| Cover Material Thickness | 16 ga |
| NEMA Enclosure Rating | 3R |
| Environment - MERCH | Weather Resistant |
| Cover Style | Solid |
| Compatible Panel Model Number | N1P1012, N1P1012G, N1P1012PP |
| Cover Closure Type | Hinged |
| Includes Knockouts | Knockouts Included |
| Body Material Thickness | 16 ga |
| Package Quantity | 1 |
