Carbon Steel Electrical Enclosures, 12 in H, 6 in D, 12 in W, NEMA 4, Hinged

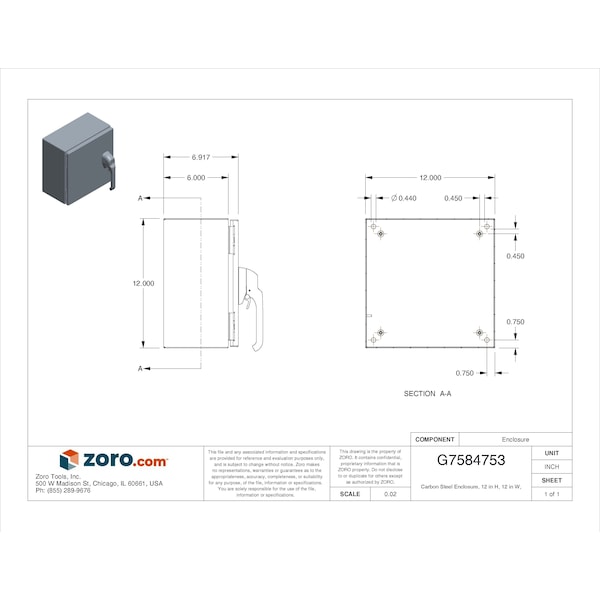

| CAD Available | Yes |
|---|---|
| Item | Electrical Enclosures |
| Nominal Width | 12 in |
| Nominal Height | 12 in |
| Nominal Depth | 6 in |
| Enclosure NEMA Rating | NEMA 4 |
| Material of Enclosure | Carbon Steel |
| Closure Method | Latch |
| Enclosure Cover Type | Hinged |
| Knockouts | Yes |
| Metallic / Non-Metallic | Metallic |
| Color | Gray |
| Finish | Polyester Powder |
| Mounting | Wall |
| Solid / Clear Cover | Solid |
| Gasket | Seamless Polyurethane Poured in Place |
| Interior Panel | 2NJ26 |
| Features | Mounting Holes |
| Standards | CSA Certified, cULus, IEC, UL Listed |
| Usable Opening Depth | 5.88 in |
| Metal Gauge | 14 ga |
| Series | N412-PTC |
| IP Rating | IP66 |
| Enclosure Material | Steel |
| Cover Type | Door |
| Application | Hubbell Wiegmann N4121PTC ULTIMATE Series Enclosures are designed to house and protect electrical and eletronic components from harsh, dirty environments. For use in installations where dirt, dust, oil water, or other contaminants are present. Streamlined |
| Compatible Panel Model Number | NP1212C, NP1212CG |
| Gasket Material | Seamless Polyurethane Poured in Place |
| Environment - MERCH | Washdown |
| Cover Style | Solid |
| Includes Knockouts | Knockouts Not Included |
| Body Material Thickness | 14 ga |
| Cover Closure Type | Hinged |
| NEMA Enclosure Rating | 12, 4, 13, 3R |
| Cover Material Thickness | 14 ga |
| Package Quantity | 1 |
