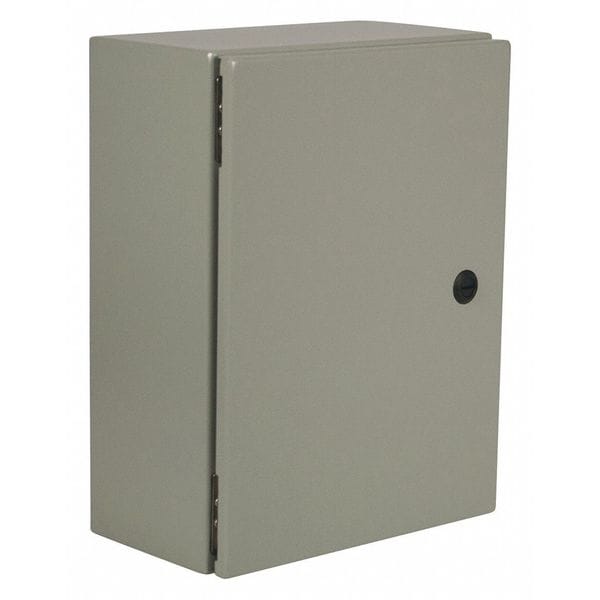

Carbon Steel Electrical Enclosures, 16 in H, 10 in D, 20 in W, NEMA 4, 12, Hinged
| Item | Electrical Enclosures |
|---|---|
| Nominal Width | 20 in |
| Nominal Height | 16 in |
| Nominal Depth | 10 in |
| Enclosure NEMA Rating | NEMA 4, 12 |
| Material of Enclosure | Carbon Steel |
| Closure Method | 1/4 Turn Latch |
| Enclosure Cover Type | Hinged |
| Knockouts | No |
| Metallic / Non-Metallic | Metallic |
| Color | Gray |
| Finish | Polyester Powder |
| Mounting | Wall |
| Solid / Clear Cover | Solid |
| Interior Panel | Mfr No. NP2016C, NP2016CG |
| Metal Gauge | 14 ga |
| Features | Mounting Holes, Poured in Place Gasket, Turn Semi-Flush Latches |
| Gasket | Seamless Foam-In-Place |
| Series | Ultimate |
| Standards | CSA Certified, cULus, IEC, UL Listed |
| Enclosure Cover Features | 1/4 Turn Latch |
| Usable Opening Depth | 10 in |
| Enclosure Material | Steel |
| IP Rating | IP66 |
| Capacity | 3,200 cu in |
| Weight | 32 lb. |
| Application | Hubbell Wiegmann N412C ULTIMATE Series Enclosures are designed to house and protect electrical and electronic components from harsh, dirty environments. For use in installations where dirt, dust, oil, water, or other contaminants are present. Streamlined |
| Cover Style | Solid |
| Compatible Panel Model Number | NP1620C, NP1620CG |
| Environment - MERCH | Washdown |
| Gasket Material | Seamless Foam-In-Place |
| Cover Closure Type | Hinged |
| Includes Knockouts | Knockouts Not Included |
| Body Material Thickness | 14 ga |
| NEMA Enclosure Rating | 12, 4, 13, 3R |
| Package Quantity | 1 |
