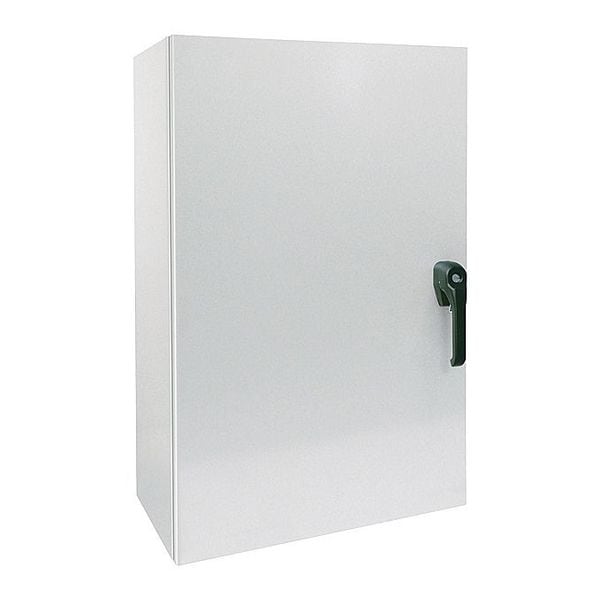

Carbon Steel Electrical Enclosures, 16 in H, 6 in D, 16 in W, NEMA 4, Hinged
| Item | Electrical Enclosures |
|---|---|
| Nominal Width | 16 in |
| Nominal Height | 16 in |
| Nominal Depth | 6 in |
| Enclosure NEMA Rating | NEMA 4 |
| Material of Enclosure | Carbon Steel |
| Closure Method | Latch |
| Enclosure Cover Type | Hinged |
| Knockouts | Yes |
| Metallic / Non-Metallic | Metallic |
| Color | Gray |
| Finish | Polyester Powder |
| Mounting | Wall |
| Solid / Clear Cover | Solid |
| Interior Panel | 2NJ30 |
| Standards | CSA Certified, cULus, IEC, UL Listed |
| IP Rating | IP66 |
| Features | Mounting Holes |
| Gasket | Seamless Polyurethane Poured in Place |
| Usable Opening Depth | 5.88 in |
| Series | N412-PTC |
| Metal Gauge | 14 ga |
| Enclosure Cover Features | 1 pt Key Padlockable Handle |
| Enclosure Material | Steel |
| Includes Knockouts | Knockouts Not Included |
| Cover Material Thickness | 14 ga |
| Compatible Panel Model Number | NP1616C, NP1616CG |
| NEMA Enclosure Rating | 12, 4, 13, 3R |
| Gasket Material | Seamless Polyurethane Poured in Place |
| Environment - MERCH | Washdown |
| Cover Closure Type | Hinged |
| Cover Style | Solid |
| Body Material Thickness | 14 ga |
| Package Quantity | 1 |
