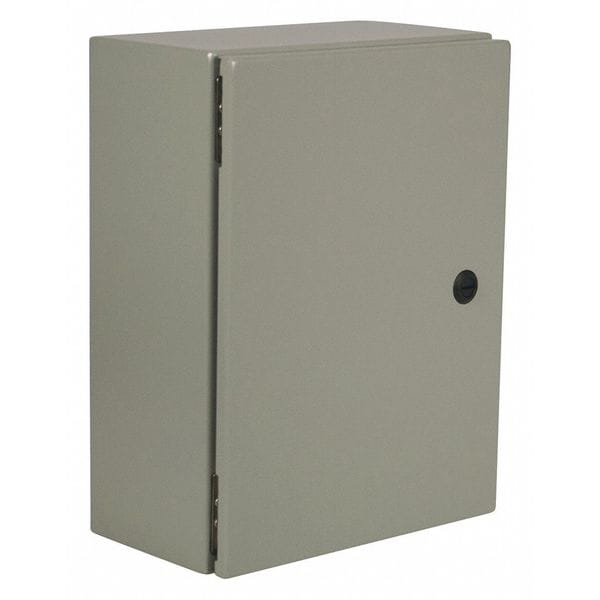

Carbon Steel Electrical Enclosures, 20 in H, 10 in D, 16 in W, NEMA 4, 12, Hinged
| Item | Electrical Enclosures |
|---|---|
| Nominal Width | 16 in |
| Nominal Height | 20 in |
| Nominal Depth | 10 in |
| Enclosure NEMA Rating | NEMA 4, 12 |
| Material of Enclosure | Carbon Steel |
| Closure Method | 1/4 Turn Latch |
| Enclosure Cover Type | Hinged |
| Knockouts | No |
| Metallic / Non-Metallic | Metallic |
| Color | Gray |
| Finish | Polyester Powder |
| Mounting | Wall |
| Solid / Clear Cover | Solid |
| Standards | CSA Certified, cULus, IEC, UL Listed |
| Interior Panel | Mfr No. NP2016C, NP2016CG |
| Features | Mounting Holes, Poured in Place Gasket, Turn Semi-Flush Latches |
| Enclosure Cover Features | 1/4 Turn Latch |
| Usable Opening Depth | 10 in |
| Series | Ultimate |
| Gasket | Seamless Foam-In-Place |
| Metal Gauge | 14 ga |
| Enclosure Material | Steel |
| IP Rating | IP66 |
| Capacity | 3,200 cu in |
| Weight | 32 lb. |
| Application | Hubbell Wiegmann N412C ULTIMATE Series Enclosures are designed to house and protect electrical and electronic components from harsh, dirty environments. For use in installations where dirt, dust, oil, water, or other contaminants are present. Streamlined |
| Compatible Panel Model Number | NP2016C, NP2016CG |
| Cover Closure Type | Hinged |
| Gasket Material | Seamless Foam-In-Place |
| Body Material Thickness | 14 ga |
| Includes Knockouts | Knockouts Not Included |
| Environment - MERCH | Washdown |
| NEMA Enclosure Rating | 12, 4, 13, 3R |
| Cover Style | Solid |
| Package Quantity | 1 |
