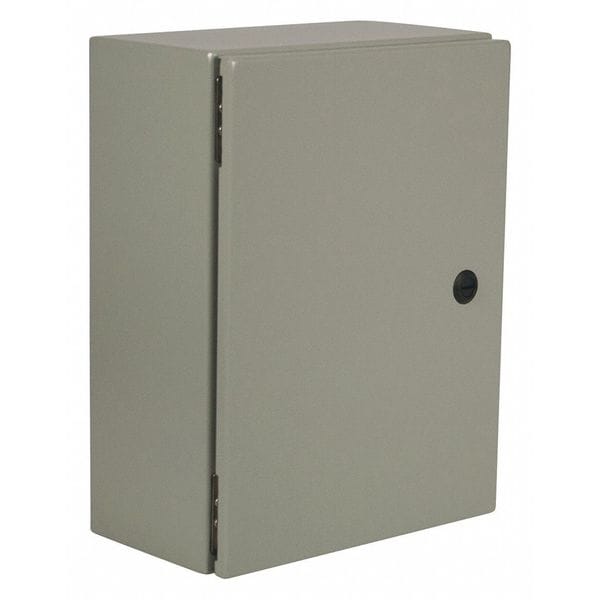

Carbon Steel Electrical Enclosures, 20 in H, 10 in D, 24 in W, NEMA 4, 12, Hinged
| Item | Electrical Enclosures |
|---|---|
| Nominal Width | 24 in |
| Nominal Height | 20 in |
| Nominal Depth | 10 in |
| Enclosure NEMA Rating | NEMA 4, 12 |
| Material of Enclosure | Carbon Steel |
| Closure Method | 1/4 Turn Latch |
| Enclosure Cover Type | Hinged |
| Knockouts | No |
| Metallic / Non-Metallic | Metallic |
| Color | Gray |
| Finish | Polyester Powder |
| Mounting | Wall |
| Solid / Clear Cover | Solid |
| Series | Ultimate |
| Enclosure Cover Features | 1/4 Turn Latch |
| Features | Mounting Holes, Poured in Place Gasket, Turn Semi-Flush Latches |
| Usable Opening Depth | 10 in |
| Standards | CSA Certified, cULus, IEC, UL Listed |
| Interior Panel | Mfr No. NP2420C, NP2420CG |
| Gasket | Seamless Foam-In-Place |
| Metal Gauge | 14 ga |
| Enclosure Material | Steel |
| IP Rating | IP66 |
| Capacity | 4,800 cu in |
| Weight | 44 lb. |
| Application | Hubbell Wiegmann N412C ULTIMATE Series Enclosures are designed to house and protect electrical and electronic components from harsh, dirty environments. For use in installations where dirt, dust, oil, water, or other contaminants are present. Streamlined |
| Cover Closure Type | Hinged |
| NEMA Enclosure Rating | 12, 4, 13, 3R |
| Includes Knockouts | Knockouts Not Included |
| Cover Style | Solid |
| Body Material Thickness | 14 ga |
| Gasket Material | Seamless Foam-In-Place |
| Environment - MERCH | Washdown |
| Compatible Panel Model Number | NP2024C, NP2024CG |
| Package Quantity | 1 |
