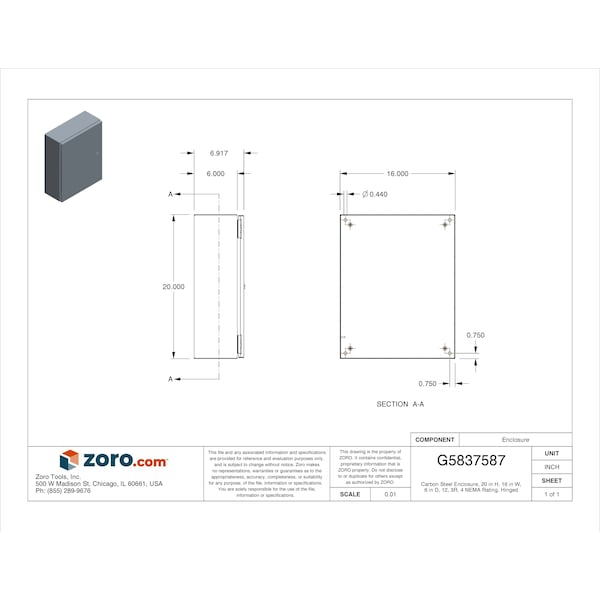

Carbon Steel Electrical Enclosures, 20 in H, 6 in D, 16 in W, NEMA 4, 12, Hinged
| CAD Available | Yes |
|---|---|
| Item | Electrical Enclosures |
| Nominal Width | 16 in |
| Nominal Height | 20 in |
| Nominal Depth | 6 in |
| Enclosure NEMA Rating | NEMA 4, 12 |
| Material of Enclosure | Carbon Steel |
| Closure Method | 1/4 Turn Latch |
| Enclosure Cover Type | Hinged |
| Knockouts | No |
| Metallic / Non-Metallic | Metallic |
| Color | Gray |
| Finish | Polyester Powder |
| Mounting | Wall |
| Solid / Clear Cover | Solid |
| Gasket | Seamless Polyurethane Poured in Place |
| Metal Gauge | 14 ga |
| IP Rating | IP66 |
| Series | N412-C |
| Standards | CSA Certified, cULus, IEC, UL Listed |
| Features | Mounting Holes |
| Usable Opening Depth | 5.88 in |
| Interior Panel | 2NJ32, 2NJ33 |
| Enclosure Cover Features | 1/4 Turn Semiflush Latch |
| Enclosure Material | Steel |
| Weight | 29 lb. |
| Capacity | 1,920 cu in |
| Application | Hubbell Wiegmann N412C ULTIMATE Series Enclosures are designed to house and protect electrical and electronic components from harsh, dirty environments. For use in installations where dirt, dust, oil, water, or other contaminants are present. Streamlined |
| NEMA Enclosure Rating | 12, 4, 13, 3R |
| Compatible Panel Model Number | NP2016C, NP2016CG |
| Environment - MERCH | Washdown |
| Cover Style | Solid |
| Includes Knockouts | Knockouts Not Included |
| Gasket Material | Seamless Polyurethane Poured in Place |
| Cover Closure Type | Hinged |
| Body Material Thickness | 14 ga |
| Package Quantity | 1 |
