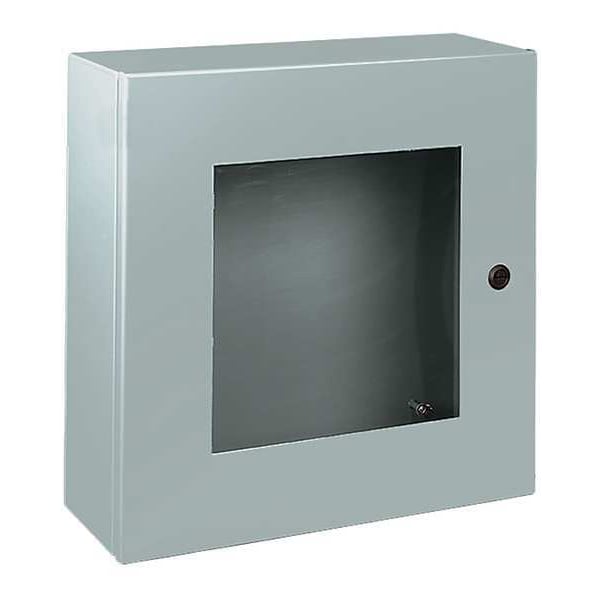

Carbon Steel Electrical Enclosures, 20 in H, 8 in D, 20 in W, NEMA 4, 12, Hinged
| Item | Electrical Enclosures |
|---|---|
| Nominal Width | 20 in |
| Nominal Height | 20 in |
| Nominal Depth | 8 in |
| Enclosure NEMA Rating | NEMA 4, 12 |
| Material of Enclosure | Carbon Steel |
| Closure Method | 1/4 Turn Latch |
| Enclosure Cover Type | Hinged |
| Knockouts | No |
| Metallic / Non-Metallic | Metallic |
| Color | Gray |
| Finish | Polyester Powder |
| Mounting | Wall |
| Solid / Clear Cover | Clear |
| Interior Panel | 2NJ34 |
| IP Rating | IP66 |
| Enclosure Cover Features | 1/4 Turn Semiflush Latch |
| Gasket | Seamless Polyurethane Poured in Place |
| Metal Gauge | 14 ga |
| Usable Opening Depth | 7.88 in |
| Standards | CSA Certified, cULus, IEC, UL Listed |
| Series | 5SY4 |
| Includes | Mounting Feet |
| Enclosure Material | Steel |
| Capacity | 3,200 cu in |
| Weight | 37 lb. |
| Application | Hubbell Wiegmann N412WC ULTIMATE Series Enclosures are designed to house and protect electrical and electronic components from harsh, dirty environments. For use in installations where dirt, dust, oil, water, or other contaminants are present. Streamlined |
| Gasket Material | Seamless Polyurethane Poured in Place |
| Environment - MERCH | Washdown |
| Includes Knockouts | Knockouts Not Included |
| Compatible Panel Model Number | NP2020C, NP2020CG |
| Cover Style | Clear |
| Body Material Thickness | 14 ga |
| NEMA Enclosure Rating | 12, 4, 13, 3R |
| Cover Closure Type | Hinged |
| Package Quantity | 1 |
