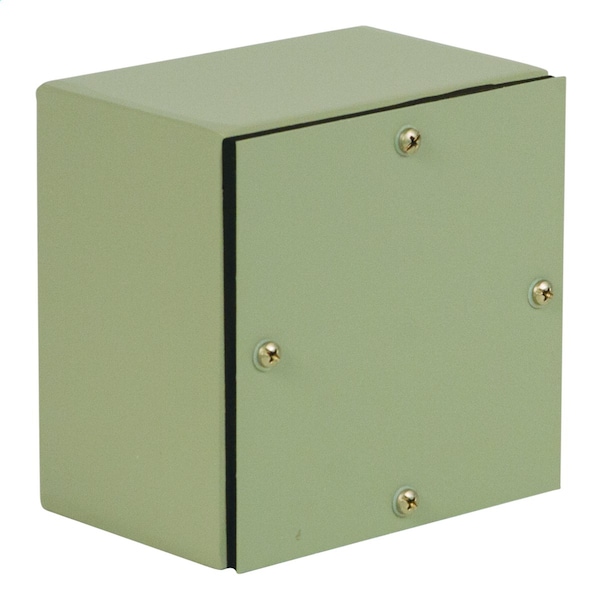

Carbon Steel Electrical Enclosures, 20 in H, 8 in D, 24 in W, NEMA 4, Screw On
| Item | Electrical Enclosures |
|---|---|
| Nominal Width | 24 in |
| Nominal Height | 20 in |
| Nominal Depth | 8 in |
| Enclosure NEMA Rating | NEMA 4 |
| Material of Enclosure | Carbon Steel |
| Closure Method | Screws |
| Enclosure Cover Type | Screw On |
| Knockouts | No |
| Metallic / Non-Metallic | Metallic |
| Color | Gray |
| Finish | Polyester Powder |
| Solid / Clear Cover | Solid |
| Standards | UL |
| Features | Bodies and covers fabricated from 14 gauge carbon steel; Seams are continuously welded and ground smooth; Cover contains closed cell oil resistant neoprene gasket; Enclosure comes with stainless steel cover screws which thread into sealed wells to prevent liquid, dust, etc. from entering into the box through the screw holes; Ground stud located in door; No holes, knockout, or rear mounting holes |
| Weight | 39 lb. |
| Application | Designed for use as wiring box, junction box, pull box, and terminal box in many indoor or outdoor applications where dust or moisture is a problem. |
| Capacity | 2,420 cu in |
| Package Quantity | 1 |
