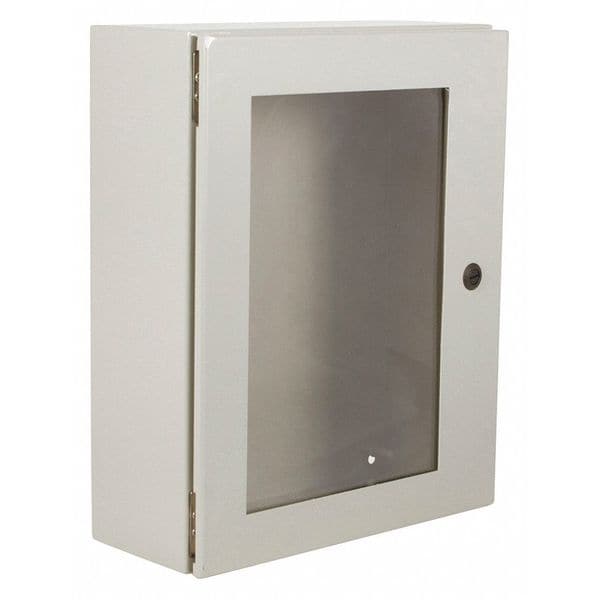

Carbon Steel Electrical Enclosures, 24 in H, 6 in D, 24 in W, NEMA 4, 12, Hinged
| Item | Electrical Enclosures |
|---|---|
| Nominal Width | 24 in |
| Nominal Height | 24 in |
| Nominal Depth | 6 in |
| Enclosure NEMA Rating | NEMA 4, 12 |
| Material of Enclosure | Carbon Steel |
| Closure Method | 1/4 Turn Latch |
| Enclosure Cover Type | Hinged |
| Knockouts | No |
| Metallic / Non-Metallic | Metallic |
| Color | Gray |
| Finish | Polyester Powder |
| Mounting | Wall |
| Solid / Clear Cover | Clear |
| Interior Panel | Mfr No. NP2424C, NP2424CG |
| Features | Mounting Holes, Poured in Place Gasket, Turn Semi-Flush Latches |
| Gasket | Seamless Foam-In-Place |
| Standards | CSA Certified, cULus, IEC, UL Listed |
| Metal Gauge | 14 ga |
| Series | Ultimate |
| Usable Opening Depth | 6 in |
| Enclosure Cover Features | 1/4 Turn Latch, Clear Window |
| Enclosure Material | Steel |
| IP Rating | IP66 |
| Application | Hubbell Wiegmann N412WC ULTIMATE Series Enclosures are designed to house and protect electrical and electronic components from harsh, dirty environments. For use in installations where dirt, dust, oil, water, or other contaminants are present. Streamlined |
| Includes Knockouts | Knockouts Not Included |
| Environment - MERCH | Washdown |
| NEMA Enclosure Rating | 12, 4, 13, 3R |
| Cover Closure Type | Hinged |
| Compatible Panel Model Number | NP2424C, NP2424CG |
| Cover Style | Solid with Window |
| Gasket Material | Seamless Foam-In-Place |
| Body Material Thickness | 14 ga |
| Package Quantity | 1 |
