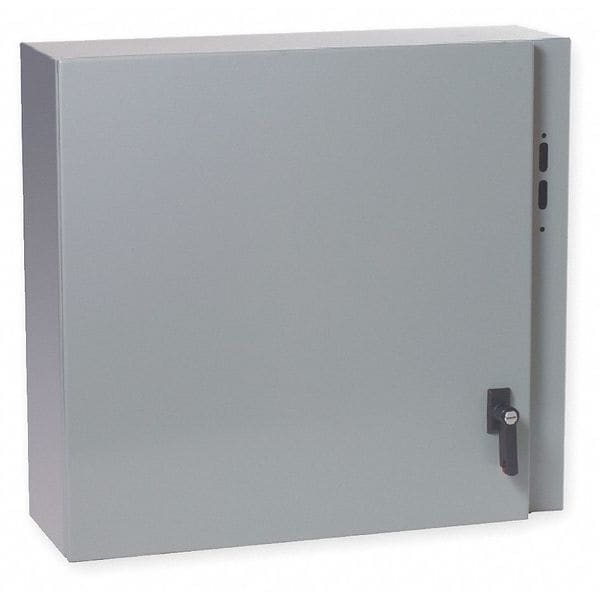

Carbon Steel Electrical Enclosures, 24 in H, 8 in D, 22 in W, NEMA 3R, 4, 12, Hinged
| Item | Electrical Enclosures |
|---|---|
| Nominal Width | 22 in |
| Nominal Height | 24 in |
| Nominal Depth | 8 in |
| Enclosure NEMA Rating | NEMA 3R, 4, 12 |
| Material of Enclosure | Carbon Steel |
| Closure Method | 1/4 Turn Latch |
| Enclosure Cover Type | Hinged |
| Knockouts | No |
| Metallic / Non-Metallic | Metallic |
| Color | Gray |
| Finish | Polyester Powder |
| Mounting | Wall |
| Solid / Clear Cover | Solid |
| Metal Gauge | 14 ga |
| Features | Mounting Holes |
| Standards | CSA Certified, cULus, IEC, RoHS Compliant, UL Listed |
| Interior Panel | 2NJ38 |
| Series | N412-CD |
| Gasket | Seamless Polyurethane Poured in Place |
| Enclosure Cover Features | 1/4 Turn Semiflush Latch |
| IP Rating | IP66 |
| Usable Opening Depth | 7.88 in |
| Enclosure Material | Steel |
| Interior Color | Gray |
| Includes Handle | Handle Included |
| NEMA Enclosure Rating | 12, 4, 13, 3R |
| Includes Knockouts | Knockouts Not Included |
| Cover Closure Type | Hinged |
| Body Material Thickness | 14 ga |
| Compatible with Panel Model Numbers | NP2420C |
| Gasket Material | Polyurethane |
| Cover Material Thickness | 14 ga |
| Cover Style | Solid |
| Package Quantity | 1 |
