Carbon Steel Electrical Enclosures, 24 in H, 8 in D, 24 in W, NEMA 4, 12, Hinged

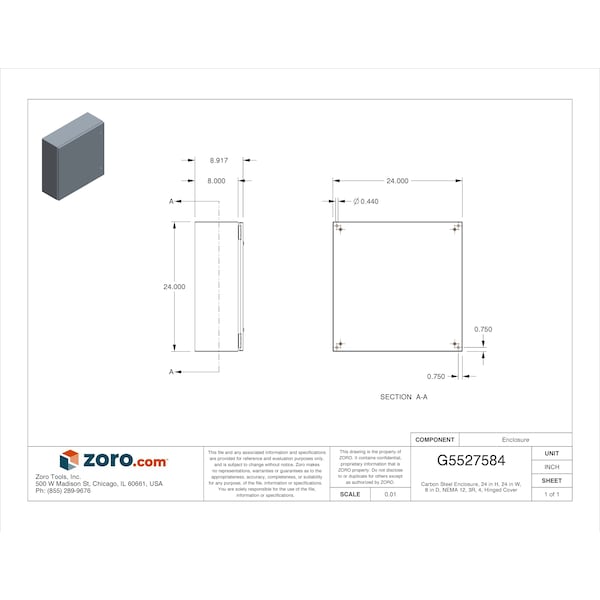

| CAD Available | Yes |
|---|---|
| Item | Electrical Enclosures |
| Nominal Width | 24 in |
| Nominal Height | 24 in |
| Nominal Depth | 8 in |
| Enclosure NEMA Rating | NEMA 4, 12 |
| Material of Enclosure | Carbon Steel |
| Closure Method | 1/4 Turn Latch |
| Enclosure Cover Type | Hinged |
| Knockouts | No |
| Metallic / Non-Metallic | Metallic |
| Color | Gray |
| Finish | Polyester Powder |
| Mounting | Wall |
| Solid / Clear Cover | Solid |
| Metal Gauge | 14 ga |
| Interior Panel | 2NJ40, 2NJ41 |
| Features | Mounting Holes |
| IP Rating | IP66 |
| Standards | CSA Certified, cULus, IEC, UL Listed |
| Series | N412-C |
| Gasket | Seamless Polyurethane Poured in Place |
| Usable Opening Depth | 7.88 in |
| Enclosure Material | Steel |
| Cover Type | Door |
| Application | Hubbell Wiegmann N412C ULTIMATE Series Enclosures are designed to house and protect electrical and electronic components from harsh, dirty environments. For use in installations where dirt, dust, oil, water, or other contaminants are present. Streamlined |
| Cover Style | Solid |
| Compatible Panel Model Number | NP2424C, NP2424CG |
| Cover Closure Type | Hinged |
| Body Material Thickness | 14 ga |
| Environment - MERCH | Washdown |
| NEMA Enclosure Rating | 12, 4, 13, 3R |
| Includes Knockouts | Knockouts Not Included |
| Gasket Material | Seamless Polyurethane Poured in Place |
| Package Quantity | 1 |
