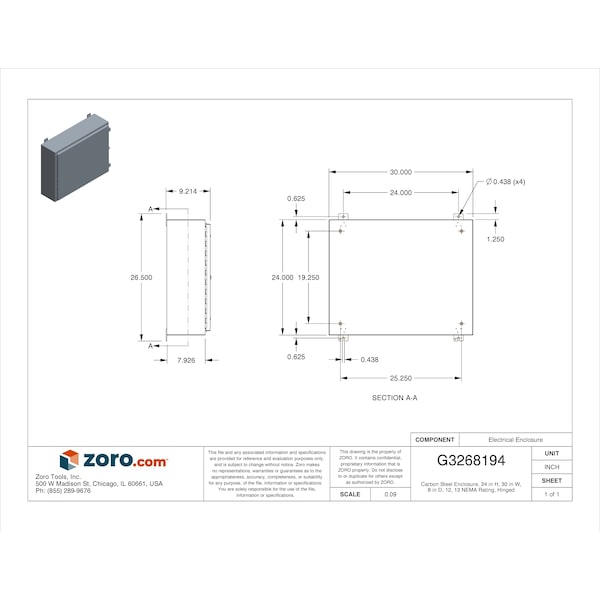

Carbon Steel Electrical Enclosures, 24 in H, 8 in D, 30 in W, NEMA 12, Hinged
| CAD Available | Yes |
|---|---|
| Item | Electrical Enclosures |
| Nominal Width | 30 in |
| Nominal Height | 24 in |
| Nominal Depth | 8 in |
| Enclosure NEMA Rating | NEMA 12 |
| Material of Enclosure | Carbon Steel |
| Closure Method | Hasp |
| Enclosure Cover Type | Hinged |
| Knockouts | No |
| Metallic / Non-Metallic | Metallic |
| Color | Gray |
| Finish | Polyester Powder |
| Mounting | Wall |
| Solid / Clear Cover | Solid |
| Standards | CSA Certified, cULus, UL Listed |
| Series | N12 |
| Enclosure Cover Features | Hasp and Staple for Padlocking |
| Metal Gauge | 14 ga |
| Interior Panel | 3A924 |
| Gasket | Seamless Polyurethane Poured in Place |
| Features | External Mounting Feet |
| Usable Opening Depth | 7.88 in |
| Enclosure Material | Steel |
| Capacity | 5,760 cu in |
| Weight | 59 lb. |
| Application | Intended for use in housing electrical and electronic controls, instruments, components and associated wiring. These enclosures incorporate hinged doors which provide convenient access. Designed for indoor use in protecting components from dust, dirt, oil and water. |
| Body Material Thickness | 14 ga |
| Cover Style | Solid |
| Environment - MERCH | Dust Tight |
| Cover Closure Type | Hinged |
| Includes Knockouts | Knockouts Not Included |
| Compatible Panel Model Number | NP3024, NP3024G |
| NEMA Enclosure Rating | 12, 13 |
| Gasket Material | Seamless Polyurethane Poured in Place |
| Package Quantity | 1 |
