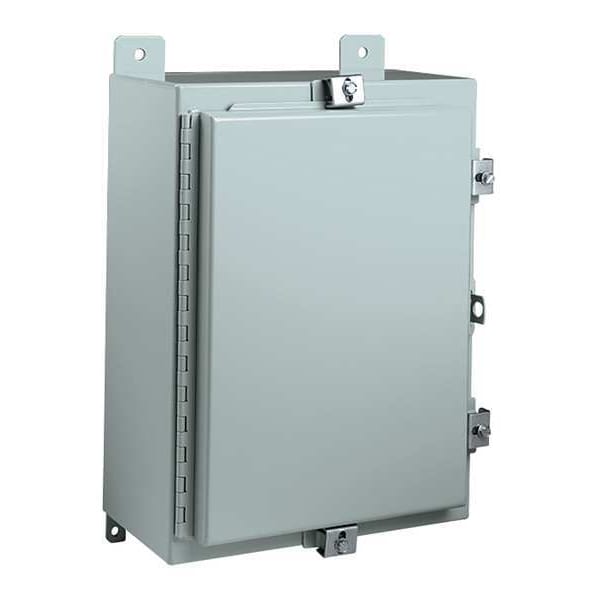

Carbon Steel Electrical Enclosures, 24 in H, 8 in D, 30 in W, NEMA 4, Hinged
| Item | Electrical Enclosures |
|---|---|
| Nominal Width | 30 in |
| Nominal Height | 24 in |
| Nominal Depth | 8 in |
| Enclosure NEMA Rating | NEMA 4 |
| Material of Enclosure | Carbon Steel |
| Closure Method | Hasp |
| Enclosure Cover Type | Hinged |
| Knockouts | No |
| Metallic / Non-Metallic | Metallic |
| Color | Gray |
| Finish | Polyester Powder |
| Mounting | Wall |
| Solid / Clear Cover | Solid |
| Enclosure Cover Features | Hasp and Staple for Padlocking |
| Usable Opening Depth | 7.88 in |
| Metal Gauge | 14 ga |
| Gasket | Seamless Polyurethane Poured in Place |
| Series | N4 |
| IP Rating | IP66 |
| Standards | CSA Certified, cULus, IEC, UL Listed |
| Interior Panel | 3A924 |
| Includes | Mounting Feet |
| Enclosure Material | Steel |
| Capacity | 17,280 cu in |
| Weight | 62 lb. |
| Application | Intended for use in housing electrical and electronic controls, instruments, components, and associated wiring, these enclosures incorporate hinged doors which provide convenient access. Designed for indoor or outdoor use in protecting components from dus |
| Cover Style | Solid |
| Cover Closure Type | Hinged |
| Body Material Thickness | 14 ga |
| Includes Knockouts | Knockouts Not Included |
| Compatible Panel Model Number | NP3024G |
| Environment - MERCH | Washdown |
| NEMA Enclosure Rating | 12, 4, 13 |
| Gasket Material | Seamless Polyurethane Poured in Place |
| Package Quantity | 1 |
