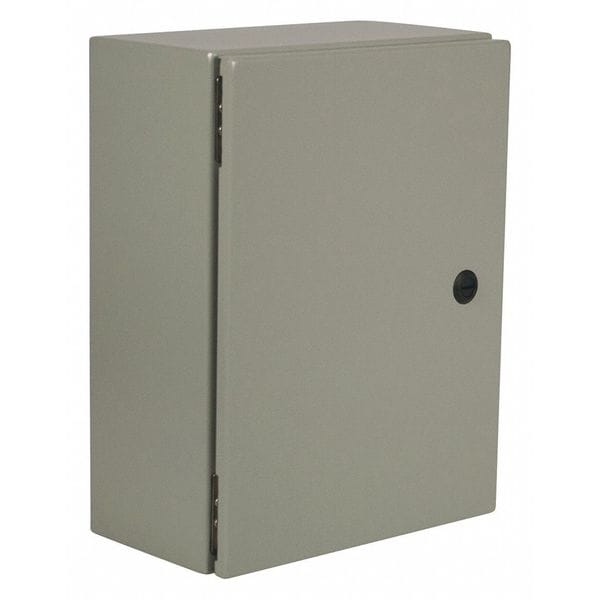

Carbon Steel Electrical Enclosures, 30 in H, 12 in D, 30 in W, NEMA 4, 12, Hinged
| Item | Electrical Enclosures |
|---|---|
| Nominal Width | 30 in |
| Nominal Height | 30 in |
| Nominal Depth | 12 in |
| Enclosure NEMA Rating | NEMA 4, 12 |
| Material of Enclosure | Carbon Steel |
| Closure Method | 1/4 Turn Latch |
| Enclosure Cover Type | Hinged |
| Knockouts | No |
| Metallic / Non-Metallic | Metallic |
| Color | Gray |
| Finish | Polyester Powder |
| Mounting | Wall |
| Solid / Clear Cover | Solid |
| Features | Mounting Holes, Poured in Place Gasket, Turn Semi-Flush Latches |
| Standards | CSA Certified, cULus, IEC, UL Listed |
| Usable Opening Depth | 12 in |
| Metal Gauge | 14 ga |
| Interior Panel | Mfr No. NP3030C, NP3030CG |
| Gasket | Seamless Foam-In-Place |
| Enclosure Cover Features | 1/4 Turn Latch |
| Series | Ultimate |
| Enclosure Material | Steel |
| IP Rating | IP66 |
| Application | Hubbell Wiegmann N412C ULTIMATE Series Enclosures are designed to house and protect electrical and electronic components from harsh, dirty environments. For use in installations where dirt, dust, oil, water, or other contaminants are present. Streamlined |
| Compatible Panel Model Number | NP3030C, NP3030CG |
| Environment - MERCH | Washdown |
| Cover Style | Solid |
| Body Material Thickness | 14 ga |
| NEMA Enclosure Rating | 12, 4, 13, 3R |
| Includes Knockouts | Knockouts Not Included |
| Gasket Material | Seamless Foam-In-Place |
| Cover Closure Type | Hinged |
| Package Quantity | 1 |
