Carbon Steel Electrical Enclosures, 30 in H, 8 in D, 24 in W, NEMA 12, Hinged

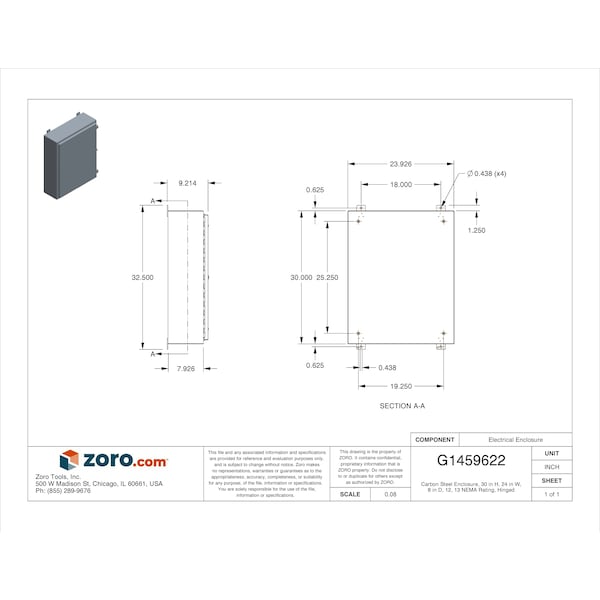

| CAD Available | Yes |
|---|---|
| Item | Electrical Enclosures |
| Nominal Width | 24 in |
| Nominal Height | 30 in |
| Nominal Depth | 8 in |
| Enclosure NEMA Rating | NEMA 12 |
| Material of Enclosure | Carbon Steel |
| Closure Method | Hasp |
| Enclosure Cover Type | Hinged |
| Knockouts | No |
| Metallic / Non-Metallic | Metallic |
| Color | Gray |
| Finish | Polyester Powder |
| Mounting | Wall |
| Solid / Clear Cover | Solid |
| Metal Gauge | 14 ga |
| Enclosure Cover Features | Hasp and Staple for Padlocking |
| Standards | CSA Certified, cULus, UL Listed |
| Series | N12 |
| Features | External Mounting Feet |
| Usable Opening Depth | 7.88 in |
| Gasket | Seamless Polyurethane Poured in Place |
| Interior Panel | 3A924 |
| Enclosure Material | Steel |
| Weight | 58 lb. |
| Capacity | 5,760 cu in |
| Application | Intended for use in housing electrical and electronic controls, instruments, components and associated wiring. These enclosures incorporate hinged doors which provide convenient access. Designed for indoor use in protecting components from dust, dirt, oil and water. |
| Includes Knockouts | Knockouts Not Included |
| Cover Style | Solid |
| Environment - MERCH | Dust Tight |
| Cover Closure Type | Hinged |
| Body Material Thickness | 14 ga |
| NEMA Enclosure Rating | 12, 13 |
| Gasket Material | Seamless Polyurethane Poured in Place |
| Compatible Panel Model Number | NP3024, NP3024G |
| Package Quantity | 1 |
