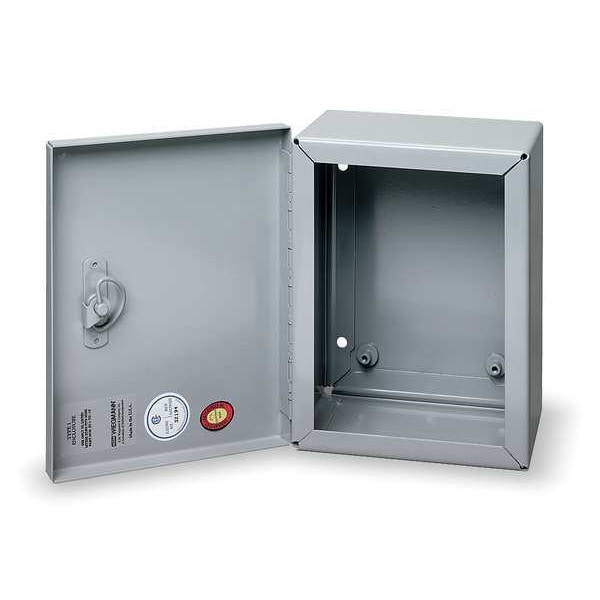

Carbon Steel Electrical Enclosures, 36 in H, 12 in D, 30 in W, NEMA 1, Hinged
| Item | Electrical Enclosures |
|---|---|
| Nominal Width | 30 in |
| Nominal Height | 36 in |
| Nominal Depth | 12 in |
| Enclosure NEMA Rating | NEMA 1 |
| Material of Enclosure | Carbon Steel |
| Closure Method | 1/4 Turn Latch |
| Enclosure Cover Type | Hinged |
| Knockouts | No |
| Metallic / Non-Metallic | Metallic |
| Color | Gray |
| Finish | Polyester Powder |
| Mounting | Wall |
| Solid / Clear Cover | Solid |
| Series | N1C-LP |
| Usable Opening Depth | 11.88 in |
| Interior Panel | None |
| Standards | cULus, UL Listed |
| Metal Gauge | 14 ga |
| Enclosure Cover Features | 1/4 Turn Latch Flush Mount |
| Enclosure Material | Steel |
| Capacity | 12,960 cu in |
| Weight | 87 lb. |
| Compatible Panel Model Number | N1P3036, N1P3036PP |
| Cover Style | Solid |
| Includes Knockouts | Knockouts Not Included |
| NEMA Enclosure Rating | 1 |
| Cover Closure Type | Hinged |
| Body Material Thickness | 14 ga |
| Environment - MERCH | Indoor |
| Package Quantity | 1 |
