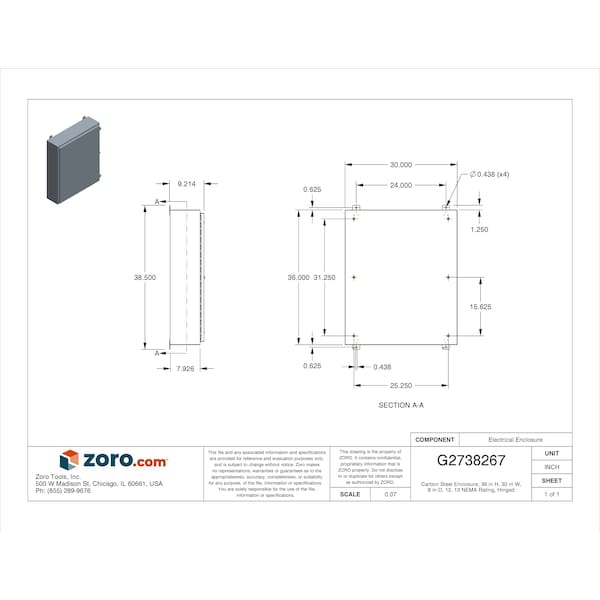

Carbon Steel Electrical Enclosures, 36 in H, 8 in D, 30 in W, NEMA 12, Hinged
| CAD Available | Yes |
|---|---|
| Item | Electrical Enclosures |
| Nominal Width | 30 in |
| Nominal Height | 36 in |
| Nominal Depth | 8 in |
| Enclosure NEMA Rating | NEMA 12 |
| Material of Enclosure | Carbon Steel |
| Closure Method | Hasp |
| Enclosure Cover Type | Hinged |
| Knockouts | No |
| Metallic / Non-Metallic | Metallic |
| Color | Gray |
| Finish | Polyester Powder |
| Mounting | Wall |
| Solid / Clear Cover | Solid |
| Series | N12 |
| Gasket | Seamless Polyurethane Poured in Place |
| Interior Panel | 3A933 |
| Enclosure Cover Features | Hasp and Staple for Padlocking |
| Features | External Mounting Feet |
| Standards | CSA Certified, cULus, UL Listed |
| Usable Opening Depth | 7.88 in |
| Metal Gauge | 14 ga |
| Enclosure Material | Steel |
| Weight | 82 lb. |
| Capacity | 8,640 cu in |
| Application | Intended for use in housing electrical and electronic controls, instruments, components and associated wiring. These enclosures incorporate hinged doors which provide convenient access. Designed for indoor use in protecting components from dust, dirt, oil and water. |
| Gasket Material | Seamless Polyurethane Poured in Place |
| Compatible Panel Model Number | NP3630, NP3630G |
| Body Material Thickness | 14 ga |
| Environment - MERCH | Dust Tight |
| NEMA Enclosure Rating | 12, 13 |
| Cover Closure Type | Hinged |
| Includes Knockouts | Knockouts Not Included |
| Cover Style | Solid |
| Package Quantity | 1 |
