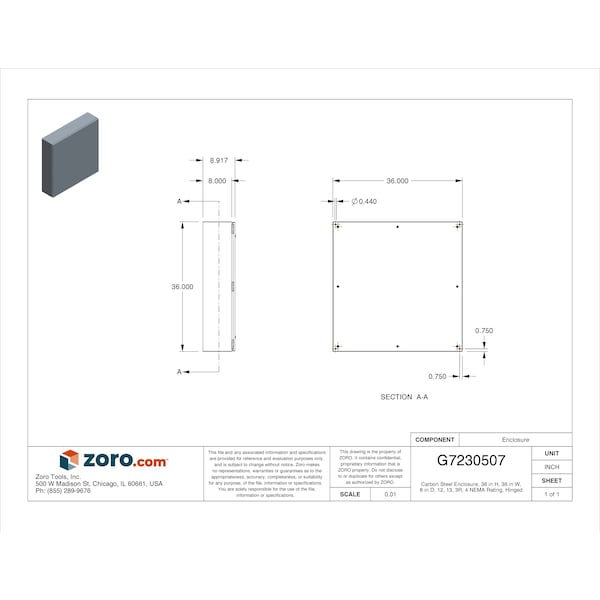

Carbon Steel Electrical Enclosures, 36 in H, 8 in D, 36 in W, NEMA 4, 12, Hinged
| CAD Available | Yes |
|---|---|
| Item | Electrical Enclosures |
| Nominal Width | 36 in |
| Nominal Height | 36 in |
| Nominal Depth | 8 in |
| Enclosure NEMA Rating | NEMA 4, 12 |
| Material of Enclosure | Carbon Steel |
| Closure Method | 1/4 Turn Latch |
| Enclosure Cover Type | Hinged |
| Knockouts | No |
| Metallic / Non-Metallic | Metallic |
| Color | Gray |
| Finish | Polyester Powder |
| Mounting | Wall |
| Solid / Clear Cover | Solid |
| Usable Opening Depth | 8 in |
| Features | Mounting Holes, Poured in Place Gasket, Turn Semi-Flush Latches |
| Interior Panel | Mfr No. NP3636C, NP3636CG |
| Series | Ultimate |
| Metal Gauge | 14 ga |
| Gasket | Seamless Foam-In-Place |
| Standards | CSA Certified, cULus, IEC, UL Listed |
| Enclosure Cover Features | 1/4 Turn Latch |
| IP Rating | IP66 |
| Enclosure Material | Steel |
| Weight | 90 lb. |
| Capacity | 10,368 cu in |
| Application | Hubbell Wiegmann N412C ULTIMATE Series Enclosures are designed to house and protect electrical and electronic components from harsh, dirty environments. For use in installations where dirt, dust, oil, water, or other contaminants are present. Streamlined |
| NEMA Enclosure Rating | 12, 4, 13, 3R |
| Cover Closure Type | Hinged |
| Compatible Panel Model Number | NP3636C, NP3636CG |
| Gasket Material | Seamless Foam-In-Place |
| Body Material Thickness | 14 ga |
| Cover Style | Solid |
| Includes Knockouts | Knockouts Not Included |
| Environment - MERCH | Washdown |
| Package Quantity | 1 |
