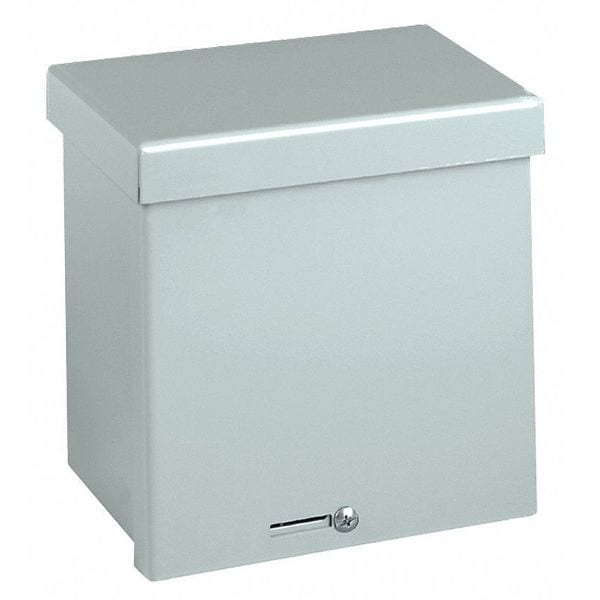

Carbon Steel Electrical Enclosures, 6 in H, 4 in D, 4 in W, NEMA 3R, Screw On

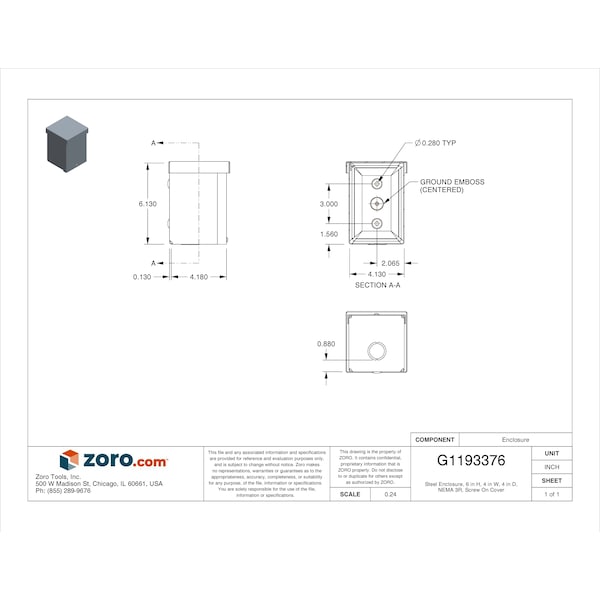

| CAD Available | Yes |
|---|---|
| Item | Electrical Enclosures |
| Nominal Width | 4 in |
| Nominal Height | 6 in |
| Nominal Depth | 4 in |
| Enclosure NEMA Rating | NEMA 3R |
| Material of Enclosure | Carbon Steel |
| Closure Method | Hasp |
| Enclosure Cover Type | Screw On |
| Knockouts | Yes |
| Metallic / Non-Metallic | Metallic |
| Color | Gray |
| Finish | Galvanized |
| Mounting | Wall |
| Solid / Clear Cover | Solid |
| Includes | Screws |
| Standards | CSA Certified, cULus, UL Listed |
| Usable Opening Depth | 3.88 in |
| Metal Gauge | 16 ga |
| Series | RSC-G |
| Features | Bodies and doors fabricated from 16 gauge pre-galvanized steel; Drop shield top and smooth seamless sides and front; Knockouts are standard on bottom; A slip-on reversible cover is securely fastened with screws located along bottom edge; No gasketing required |
| Enclosure Material | Steel |
| Cover Type | Screw Cover |
| Cable Entry | Knock Outs |
| Application | Designed for use as wiring boxes and junction boxes. Provide protection in outdoor applications against rain, sleet, and snow, or indoors against dripping water. |
| Cover Closure Type | Screw On |
| NEMA Enclosure Rating | 3R |
| Body Material Thickness | 16 ga |
| Cover Style | Solid |
| Gasket Material | Polyurethane |
| Environment - MERCH | Weather Resistant |
| Includes Knockouts | Knockouts Included |
| Cover Material Thickness | 16 ga |
| Package Quantity | 1 |
