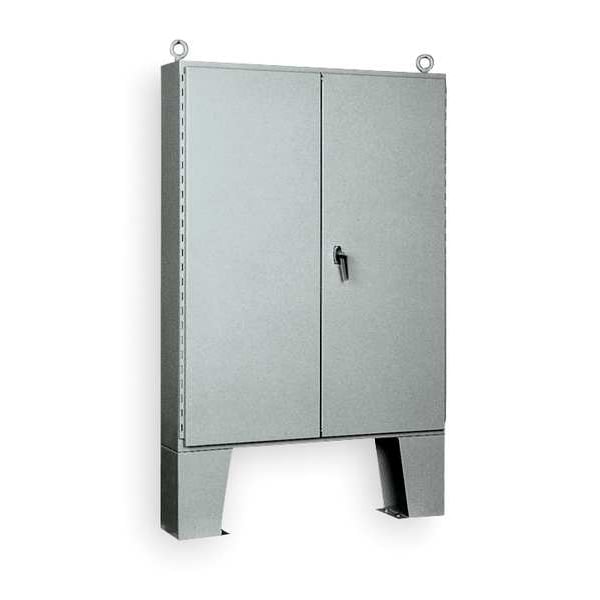

Carbon Steel Electrical Enclosures, 60 in H, 10 in D, 48 in W, NEMA 12, Hinged
| Item | Electrical Enclosures |
|---|---|
| Nominal Width | 48 in |
| Nominal Height | 60 in |
| Nominal Depth | 10 in |
| Enclosure NEMA Rating | NEMA 12 |
| Material of Enclosure | Carbon Steel |
| Closure Method | Latch |
| Enclosure Cover Type | Hinged |
| Knockouts | No |
| Metallic / Non-Metallic | Metallic |
| Color | Gray |
| Finish | Polyester Powder |
| Mounting | Floor |
| Solid / Clear Cover | Solid |
| Usable Opening Depth | 9.88 in |
| Series | N12 (large) |
| Gasket | Seamless Polyurethane Poured in Place |
| Standards | CSA Certified, cULus, UL Listed |
| Metal Gauge | 14 ga |
| Enclosure Cover Features | Keyed Handle |
| Interior Panel | 1ZHG9 |
| Includes | 12 in Floor Kit |
| Enclosure Material | Steel |
| Capacity | 28,800 cu in |
| Weight | 357 lb. |
| Application | Designed to protect electronic controls, components and instruments in typical industrial environments from dust, dirt, oil and dripping water. These enclosures are used to machine tool applications for housing motor starters, drives, contactors, PLC's, as well as a wide variety of other electrical and electronic equipment found in automotive, pulp and paper, wood products, textile and similar industries. |
| Cover Style | Solid |
| Body Material Thickness | 14 ga |
| Gasket Material | Seamless Polyurethane Poured in Place |
| Includes Knockouts | Knockouts Not Included |
| Environment - MERCH | Dust Tight |
| NEMA Enclosure Rating | 12 |
| Cover Closure Type | Hinged |
| Compatible Panel Model Number | NPDD6048, NPDD6048G |
| Package Quantity | 1 |
