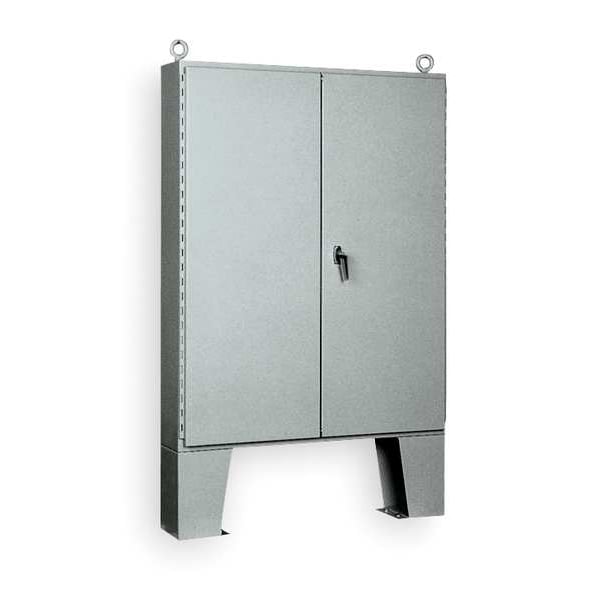

Carbon Steel Electrical Enclosures, 72 in H, 12 in D, 60 in W, NEMA 12, Hinged
| Item | Electrical Enclosures |
|---|---|
| Nominal Width | 60 in |
| Nominal Height | 72 in |
| Nominal Depth | 12 in |
| Enclosure NEMA Rating | NEMA 12 |
| Material of Enclosure | Carbon Steel |
| Closure Method | Latch |
| Enclosure Cover Type | Hinged |
| Knockouts | No |
| Metallic / Non-Metallic | Metallic |
| Color | Gray |
| Finish | Polyester Powder |
| Mounting | Floor |
| Solid / Clear Cover | Solid |
| Gasket | Seamless Polyurethane Poured in Place |
| Enclosure Cover Features | Keyed Handle |
| Interior Panel | 1ZHH2 |
| Usable Opening Depth | 11.88 in |
| Series | N12 (large) |
| Standards | CSA Certified, cULus, UL Listed |
| Includes | 12 in Floor Kit |
| Metal Gauge | 12 ga |
| Enclosure Material | Steel |
| Weight | 550 lb. |
| Capacity | 51,840 cu in |
| Application | Designed to protect electronic controls, components and instruments in typical industrial environments from dust, dirt, oil and dripping water. These enclosures are used to machine tool applications for housing motor starters, drives, contactors, PLC's, as well as a wide variety of other electrical and electronic equipment found in automotive, pulp and paper, wood products, textile and similar industries. |
| Gasket Material | Seamless Polyurethane Poured in Place |
| Body Material Thickness | 12 ga |
| Cover Style | Solid |
| Environment - MERCH | Dust Tight |
| Includes Knockouts | Knockouts Not Included |
| Cover Closure Type | Hinged |
| Compatible Panel Model Number | NPDD7260, NPDD7260G |
| NEMA Enclosure Rating | 12 |
| Package Quantity | 1 |
