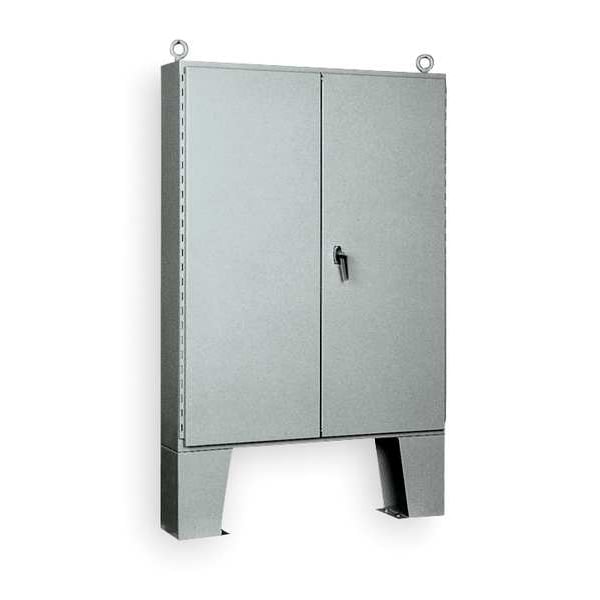

Carbon Steel Electrical Enclosures, 72 in H, 12 in D, 72 in W, NEMA 12, Hinged
| Item | Electrical Enclosures |
|---|---|
| Nominal Width | 72 in |
| Nominal Height | 72 in |
| Nominal Depth | 12 in |
| Enclosure NEMA Rating | NEMA 12 |
| Material of Enclosure | Carbon Steel |
| Closure Method | Latch |
| Enclosure Cover Type | Hinged |
| Knockouts | No |
| Metallic / Non-Metallic | Metallic |
| Color | Gray |
| Finish | Polyester Powder |
| Mounting | Floor |
| Solid / Clear Cover | Solid |
| Metal Gauge | 12 ga |
| Standards | CSA Certified, cULus, UL Listed |
| Interior Panel | 1ZHH3 |
| Usable Opening Depth | 11.88 in |
| Series | N12 (large) |
| Gasket | Seamless Polyurethane Poured in Place |
| Includes | 12 in Floor Kit |
| Enclosure Cover Features | Keyed Handle |
| Enclosure Material | Steel |
| Weight | 625 lb. |
| Capacity | 62,208 cu in |
| Application | Designed to protect electronic controls, components and instruments in typical industrial environments from dust, dirt, oil and dripping water. These enclosures are used to machine tool applications for housing motor starters, drives, contactors, PLC's, as well as a wide variety of other electrical and electronic equipment found in automotive, pulp and paper, wood products, textile and similar industries. |
| NEMA Enclosure Rating | 12 |
| Gasket Material | Seamless Polyurethane Poured in Place |
| Cover Style | Solid |
| Environment - MERCH | Dust Tight |
| Compatible Panel Model Number | NPDD7272, NPDD7272G |
| Cover Closure Type | Hinged |
| Includes Knockouts | Knockouts Not Included |
| Body Material Thickness | 12 ga |
| Package Quantity | 1 |
