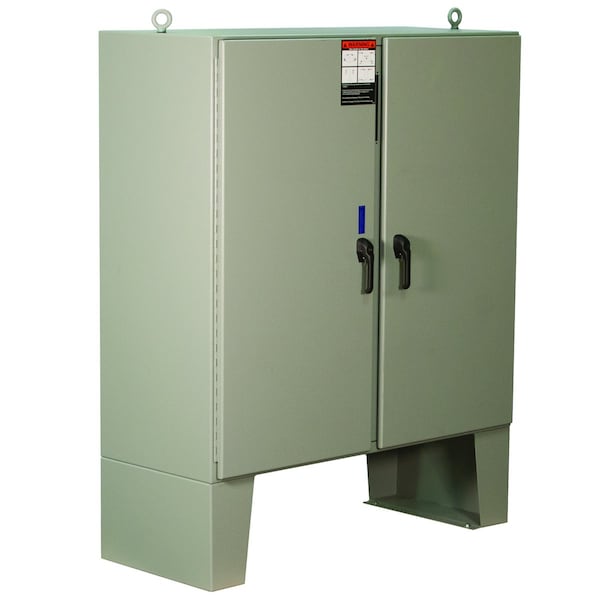

Carbon Steel Electrical Enclosures, 72 in H, 12 in D, 74 in W, NEMA 12, Hinged
| Item | Electrical Enclosures |
|---|---|
| Nominal Width | 74 in |
| Nominal Height | 72 in |
| Nominal Depth | 12 in |
| Enclosure NEMA Rating | NEMA 12 |
| Material of Enclosure | Carbon Steel |
| Closure Method | Latch |
| Enclosure Cover Type | Hinged |
| Metallic / Non-Metallic | Metallic |
| Color | Gray |
| Finish | Polyester Powder |
| Mounting | Floor |
| Solid / Clear Cover | Solid |
| Standards | UL, CSA |
| Weight | 720 lb. |
| Application | The Wiegmann universal cutout is used in large freestand and floorstand enclosures. |
| Capacity | 63,936 cu in |
| Package Quantity | 1 |
