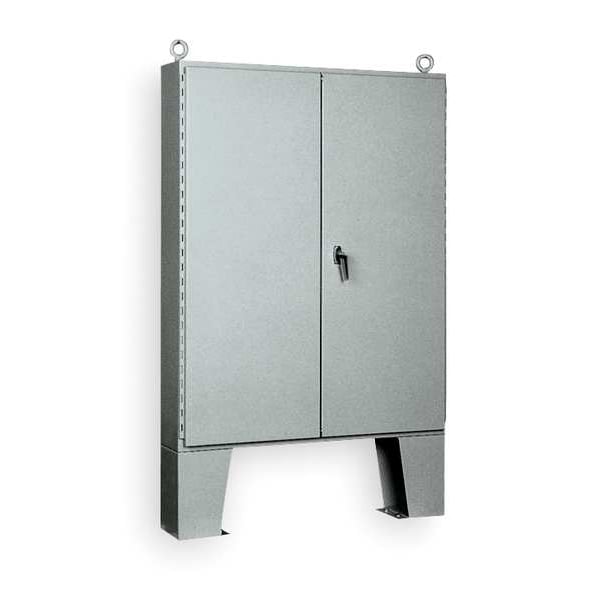

Carbon Steel Electrical Enclosures, 72 in H, 16 in D, 60 in W, NEMA 12, Hinged
| Item | Electrical Enclosures |
|---|---|
| Nominal Width | 60 in |
| Nominal Height | 72 in |
| Nominal Depth | 16 in |
| Enclosure NEMA Rating | NEMA 12 |
| Material of Enclosure | Carbon Steel |
| Closure Method | Latch |
| Enclosure Cover Type | Hinged |
| Knockouts | No |
| Metallic / Non-Metallic | Metallic |
| Color | Gray |
| Finish | Polyester Powder |
| Mounting | Floor |
| Solid / Clear Cover | Solid |
| Metal Gauge | 12 ga |
| Gasket | Seamless Polyurethane Poured in Place |
| Usable Opening Depth | 15.88 in |
| Includes | 12 in Floor Kit |
| Interior Panel | 1ZHH2 |
| Standards | CSA Certified, cULus, UL Listed |
| Series | N12 (large) |
| Enclosure Cover Features | Keyed Handle |
| Enclosure Material | Steel |
| Capacity | 69,120 cu in |
| Weight | 600 lb. |
| Application | Designed to protect electronic controls, components and instruments in typical industrial environments from dust, dirt, oil and dripping water. These enclosures are used to machine tool applications for housing motor starters, drives, contactors, PLC's, as well as a wide variety of other electrical and electronic equipment found in automotive, pulp and paper, wood products, textile and similar industries. |
| Environment - MERCH | Dust Tight |
| Gasket Material | Seamless Polyurethane Poured in Place |
| NEMA Enclosure Rating | 12 |
| Compatible Panel Model Number | NPDD7260, NPDD7260G |
| Cover Closure Type | Hinged |
| Includes Knockouts | Knockouts Not Included |
| Cover Style | Solid |
| Body Material Thickness | 12 ga |
| Package Quantity | 1 |
