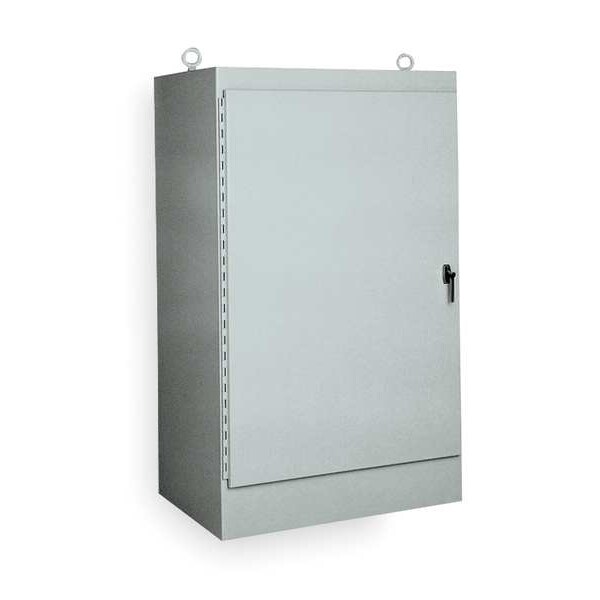

Carbon Steel Electrical Enclosures, 72 in H, 24 in D, 36 in W, NEMA 12, Hinged
| Item | Electrical Enclosures |
|---|---|
| Nominal Width | 36 in |
| Nominal Height | 72 in |
| Nominal Depth | 24 in |
| Enclosure NEMA Rating | NEMA 12 |
| Material of Enclosure | Carbon Steel |
| Closure Method | Latch |
| Enclosure Cover Type | Hinged |
| Knockouts | No |
| Metallic / Non-Metallic | Metallic |
| Color | Gray |
| Finish | Polyester Powder |
| Mounting | Freestanding |
| Solid / Clear Cover | Solid |
| Series | WA-FS |
| Enclosure Cover Features | 3 pt Keylocking-Padlocking Combo Handle |
| Interior Panel | 1ZHU4 |
| Standards | CSA Certified, cULus, UL Listed |
| Includes | Keys for Handle |
| Gasket | Seamless Polyurethane Poured in Place |
| Metal Gauge | 12 ga |
| Usable Opening Depth | 23.88 in |
| Enclosure Material | Steel |
| Application | Designed to protect electronic controls, components and instruments in typical industrial environments from dust, dirt, oil and dripping water. These enclosures are used in machine tool applications for housing motor startes, drives, contactors, PLC's as well as a wide variety of other electrical and electronic equipment. The addition of 19-inch rack mounting accessories make these enclosures ideal for providing rugged protection for sensitive rack mounted components in harsh industrial environments. The enclosures are found extensively in automotive, pulp and paper, wood products, textile and similar industries. |
| NEMA Enclosure Rating | 12 |
| Environment - MERCH | Dust Tight |
| Body Material Thickness | 12 ga |
| Gasket Material | Seamless Polyurethane Poured in Place |
| Cover Closure Type | Hinged |
| Compatible Panel Model Number | WA72P36F1, WA72P36F1G, WA72P36F2, WA72P36F2G |
| Includes Knockouts | Knockouts Not Included |
| Cover Style | Solid |
| Package Quantity | 1 |
