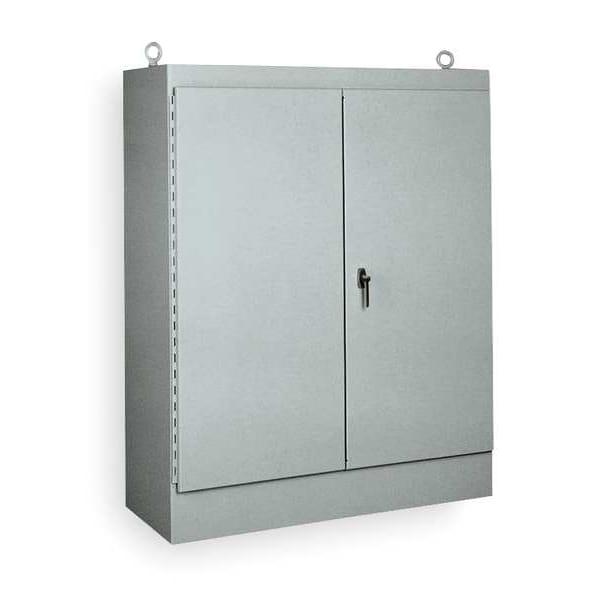

Carbon Steel Electrical Enclosures, 72 in H, 24 in D, 48 in W, NEMA 12, Hinged
| Item | Electrical Enclosures |
|---|---|
| Nominal Width | 48 in |
| Nominal Height | 72 in |
| Nominal Depth | 24 in |
| Enclosure NEMA Rating | NEMA 12 |
| Material of Enclosure | Carbon Steel |
| Closure Method | Latch |
| Enclosure Cover Type | Hinged |
| Knockouts | No |
| Metallic / Non-Metallic | Metallic |
| Color | Gray |
| Finish | Polyester Powder |
| Mounting | Freestanding |
| Solid / Clear Cover | Solid |
| Interior Panel | 1ZHU5 |
| Metal Gauge | 10 ga |
| Series | WA-FSD |
| Standards | CSA Certified, cULus, UL Listed |
| Gasket | Seamless Polyurethane Poured in Place |
| Enclosure Cover Features | 3 pt Keylocking-Padlocking Combo Handle |
| Usable Opening Depth | 23.88 in |
| Includes | Keys for Handle |
| Enclosure Material | Steel |
| Capacity | 82,944 cu in |
| Weight | 530 lb. |
| Application | Designed to protect electrical and electronic controls, components, and instruments in typical industrial environments. Enclosures protect enclosure equipment from dust, dirt, oil, and dripping water. These enclosures are used in machine tool applications |
| Includes Knockouts | Knockouts Not Included |
| Body Material Thickness | 10 ga |
| Environment - MERCH | Dust Tight |
| NEMA Enclosure Rating | 12 |
| Compatible Panel Model Number | WA72P48F1, WA72P48F1G, WA72P48F2, WA72P48F2G |
| Cover Style | Solid |
| Cover Closure Type | Hinged |
| Gasket Material | Seamless Polyurethane Poured in Place |
| Package Quantity | 1 |
