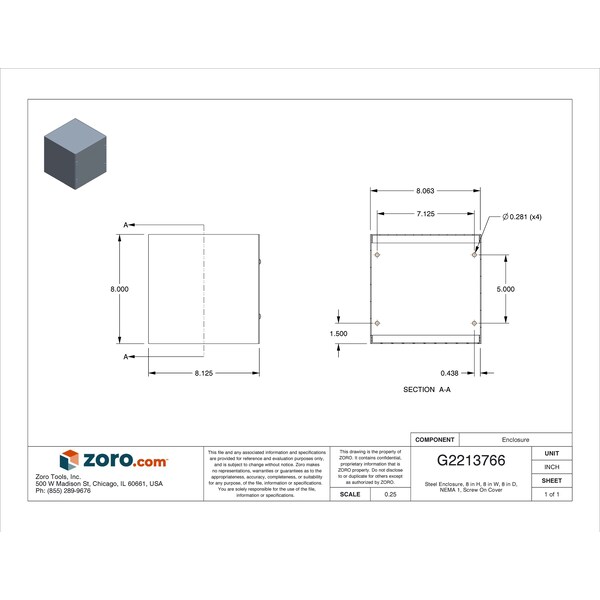

Carbon Steel Electrical Enclosures, 8 in H, 8 in D, 8 in W, NEMA 1, Screw On
| CAD Available | Yes |
|---|---|
| Item | Electrical Enclosures |
| Nominal Width | 8 in |
| Nominal Height | 8 in |
| Nominal Depth | 8 in |
| Enclosure NEMA Rating | NEMA 1 |
| Material of Enclosure | Carbon Steel |
| Closure Method | Screws |
| Enclosure Cover Type | Screw On |
| Knockouts | No |
| Metallic / Non-Metallic | Metallic |
| Color | Gray |
| Finish | Galvanized |
| Mounting | Wall |
| Solid / Clear Cover | Solid |
| Metal Gauge | 16 ga |
| Includes | Self-Tapping Screws |
| Usable Opening Depth | 7.88 in |
| Features | Embossed Mounting Holes |
| Series | SC-G |
| Standards | CSA Certified, cULus, UL Listed |
| Cover Type | Screw Cover |
| Enclosure Material | Steel |
| Capacity | 512 cu in |
| Weight | 7.5 lb. |
| Application | Designed for use as a junction box and pull box in commercial and general industrial applications. Flush covers must be ordered separately for flush mount applications. |
| Cover Style | Solid |
| Cover Closure Type | Screw On |
| Environment - MERCH | Indoor |
| NEMA Enclosure Rating | 1 |
| Body Material Thickness | 16 ga |
| Includes Knockouts | Knockouts Not Included |
| Package Quantity | 1 |
