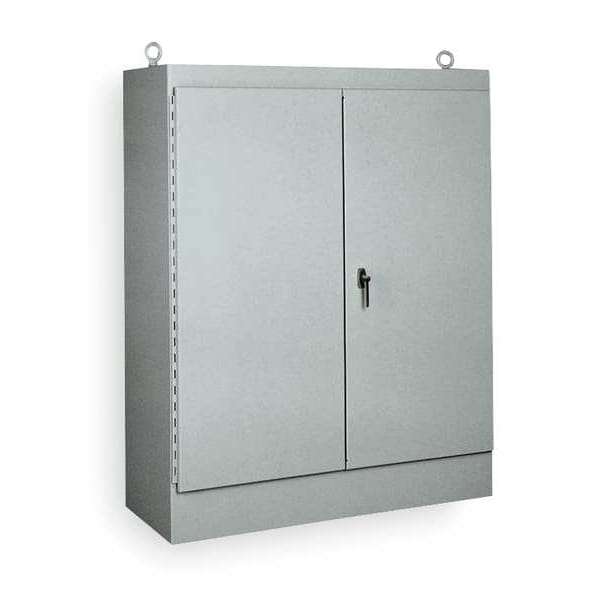

Carbon Steel Electrical Enclosures, 90 in H, 24 in D, 72 in W, NEMA 12, Hinged
| Item | Electrical Enclosures |
|---|---|
| Nominal Width | 72 in |
| Nominal Height | 90 in |
| Nominal Depth | 24 in |
| Enclosure NEMA Rating | NEMA 12 |
| Material of Enclosure | Carbon Steel |
| Closure Method | Latch |
| Enclosure Cover Type | Hinged |
| Knockouts | No |
| Metallic / Non-Metallic | Metallic |
| Color | Gray |
| Finish | Polyester Powder |
| Mounting | Freestanding |
| Solid / Clear Cover | Solid |
| Metal Gauge | 10 ga |
| Usable Opening Depth | 23.88 in |
| Gasket | Seamless Polyurethane Poured in Place |
| Enclosure Cover Features | 3 pt Keylocking-Padlocking Combo Handle |
| Series | WA-FSD |
| Interior Panel | 1ZHV6 |
| Standards | CSA Certified, cULus, UL Listed |
| Includes | Keys for Handle |
| Enclosure Material | Steel |
| Weight | 825 lb. |
| Capacity | 155,520 cu in |
| Application | Designed to protect electrical and electronic controls, components, and instruments in typical industrial environments. Enclosures protect enclosure equipment from dust, dirt, oil, and dripping water. These enclosures are used in machine tool applications |
| Cover Closure Type | Hinged |
| Includes Knockouts | Knockouts Not Included |
| Gasket Material | Seamless Polyurethane Poured in Place |
| Compatible Panel Model Number | WA90P72F1, WA90P72F1G, WA90P72F2, WA90P72F2G |
| Body Material Thickness | 10 ga |
| Cover Style | Solid |
| NEMA Enclosure Rating | 12 |
| Environment - MERCH | Dust Tight |
| Package Quantity | 1 |
