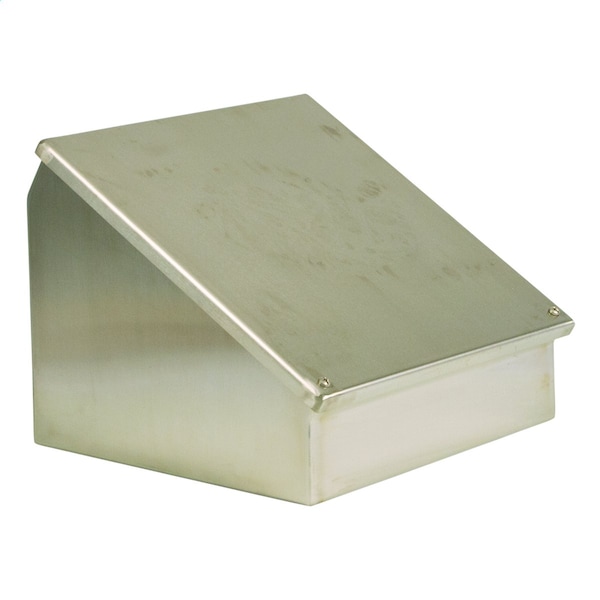

Console, 16 in. H x 36 in. W x 11.09 in. L, Stainless Steel
| Item | Console |
|---|---|
| Dimension | 16 in. H x 36 in. W x 11.09 in. L |
| Height | 16 in |
| Width | 36 in |
| Knockouts | No |
| Type | Console |
| Mounting | Grounding Provisions |
| Material | Stainless Steel |
| NEMA Enclosure Type | NEMA 12 |
| Depth | 11 in |
| Features | Fabricated from 304 stainless steel; Seams are continuously welded and ground smooth; Grounding provisions |
| Length | 11.09 in |
| Application | Designed to house a variety of electronic control or instrumentation devices. Consolets provide protection from dust, dirt, oil, and water. Flexible design allows for mounting on either of two sides, creating control surfaces of 30 degrees or 60 degrees. |
| Actual Depth | 11.09 in |
| Mounting Type | Grounding Provisions |
| Each - Width | 36 in |
| UL Listed | Yes |
| Series | WC-SS |
| Certified Listed | cULus |
| Cubic Capacity | 6,336 cu in |
| Cover Type | Screw Cover |
| Special Features | Bodies and doors fabricated from 14 gauge 304 stainless steel. Continuously welded seams ground smooth, less knockouts or holes. Captive cover screws thread into sealed wells. Control panel is continuously hinged along bottom edge. Closed cell oil resistant neoprene gasket. Grounding provisions included. |
| Standard | cULus |
| Nema Rating | 12 |
| Listings | UL, CSA |
| Construction | Continuously Welded Seams |
| Package Quantity | 1 |
