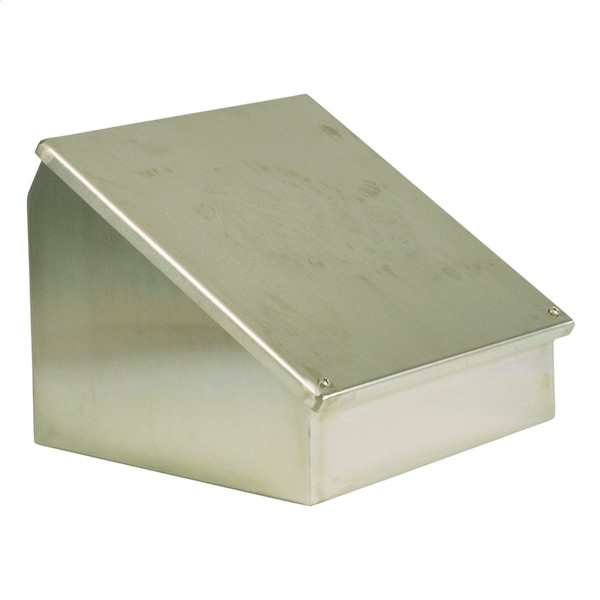

Console, 20 in. H x 30 in. W x 13 in. L, Stainless Steel
| Item | Console |
|---|---|
| Dimension | 20 in. H x 30 in. W x 13 in. L |
| Height | 20 in |
| Width | 30 in |
| Knockouts | No |
| Type | Console |
| Mounting | Grounding Provisions |
| Material | Stainless Steel |
| NEMA Enclosure Type | NEMA 12 |
| Length | 13 in |
| Application | Designed to house a variety of electronic control or instrumentation devices. Consolets provide protection from dust, dirt, oil, and water. Flexible design allows for mounting on either of two sides, creating control surfaces of 30 degrees or 60 degrees. |
| Features | Fabricated from 304 stainless steel; Seams are continuously welded and ground smooth; Grounding provisions |
| Depth | 13 in |
| Actual Depth | 13.09 in |
| Series | WC-SS |
| Cubic Capacity | 7,800 cu in |
| Cover Type | Screw Cover |
| Listings | UL, CSA |
| Nema Rating | 12 |
| Construction | Continuously Welded Seams |
| Standard | cULus |
| UL Listed | Yes |
| Special Features | Bodies and doors fabricated from 14 gauge 304 stainless steel. Continuously welded seams ground smooth, less knockouts or holes. Captive cover screws thread into sealed wells. Control panel is continuously hinged along bottom edge. Closed cell oil resistant neoprene gasket. Grounding provisions included. |
| Certified Listed | cULus |
| Mounting Type | Grounding Provisions |
| Each - Width | 30 in |
| Package Quantity | 1 |
